john deere 6140m
 | 2020 -
6M SeriesUtility tractor | 2020 - | 6M Series | Utility tractor |
|---|---|---|---|---|
2020 - | ||||
6M Series | ||||
Utility tractor | ||||
2020 - | |
|---|---|
6M Series | |
Utility tractor |
Transmission options | |
|---|---|
16-speed four-speed power shift | |
24-speed four-speed power shift | |
infinitely variable transmission (IVT) |
Transmission | |
|---|---|
Transmission | PowrQuad |
Type | four-speed power shift |
Gears | 16 forward and reverse |
Four power shift gears (1-4) in four synchronized ranges (A-D) with left-hand power shuttle. Available with creeper range providing an additional 12 speeds in forward and reverse. | |

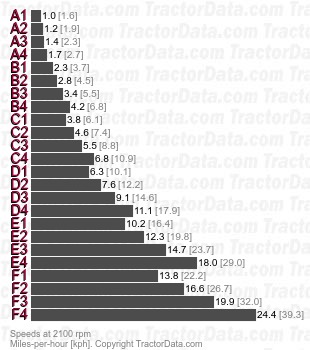

Speeds | |
|---|---|
With 600/65R38 rear tires and 30 KPH transmission option. | |
 |
Transmission | |
|---|---|
Transmission | PowrQuad/AutoQuad |
Type | four-speed power shift |
Gears | 24 forward and reverse |
Four power shift gears (1-4) in six synchronized ranges (A-F) with left-hand power shuttle. AutoQuad automatically shifts through the available gears within the selected range. Available with creeper range providing an additional 12 speeds in forward and reverse. | |
Speeds | |
|---|---|
With 600/65R38 rear tires and 40 KPH transmission option. Reverse speeds are 4% faster than forward. | |
 |
Transmission | |
|---|---|
Transmission | CommandQuad |
Type | four-speed power shift |
Gears | 24 forward and reverse |
Four power shift gears (1-4) in six electro-hydraulically shifted ranges (A-F) with left-hand power shuttle. | |
Speeds | |
|---|---|
With 600/65R38 rear tires. Reverse speeds are 4% faster than forward. | |
 |
Transmission | |
|---|---|
Transmission | AutoPowr |
Type | infinitely variable transmission (IVT) |
Gears | infinite forward and reverse |
