john deere 6215r
 | 2015 - 2021
6R SeriesRow-Crop tractor | 2015 - 2021 | 6R Series | Row-Crop tractor |
|---|---|---|---|---|
2015 - 2021 | ||||
6R Series | ||||
Row-Crop tractor | ||||
2015 - 2021 | |
|---|---|
6R Series | |
Row-Crop tractor |
Production | |
|---|---|
Manufacturer | John Deere |
Row-Crop tractor | |
Built in Waterloo, Iowa, USA | |
Original price was $183,229 in 2017 | |
John Deere 6215R Engine | |
|---|---|
John Deere 6.8L 6-cyl diesel | |
Fuel tank | 88.5 gal
335.0 L |
Exhaust fluid (DEF) | 5.3 gal
20.1 L |
Engine details ...  | |
John Deere 6215R Transmissions | |
|---|---|
16-speed partial power shift | |
20-speed partial power shift | |
24-speed eight-speed power shift | |
infinitely variable transmission | |
Transmission details ...  |
John Deere 6215R Power | |
|---|---|
Engine (gross) | 215 hp
160.3 kW |
Engine (max) | 252 hp
187.9 kW |
PTO (claimed) | 177 hp
132.0 kW |
Drawbar (tested) | 173.89 hp
129.7 kW |
PTO (tested) | 205.72 hp
153.4 kW |

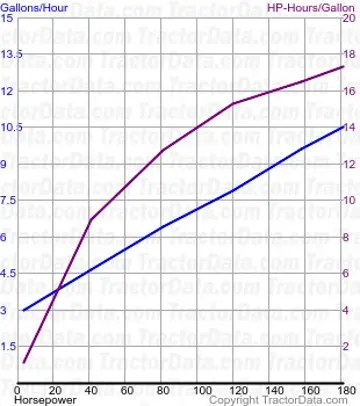

Performance test details ...  | |
Mechanical | |
|---|---|
Four-wheel drive | |
Final drives | inboard planetary |
Power steering | |
Cab standard with air-conditioning. | |
Photos | |
|---|---|
 | |
John Deere 6215R photos...  |
Hydraulics | |
|---|---|
Type | closed center pressure flow compensated (PFC) |
Pressure | 2900 psi
200.0 bar |
Rear valves | 3 to 6 |
Pump flow | 41 gpm
155.2 lpm |
SCV flow | 26.4 gpm
99.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | III/IIIN |
Rear lift (at 24"/610mm) | 11990 lbs
5438 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic |
Rear PTO Type | 540/1000 (1.375) |
| 540/1000 (1.75) |
| 540/540E/1000 (1.375) |
| 540/540E/1000 (1.75) |
| 540E/1000/1000E (1.375) |
| 540E/1000/1000E (1.75) |
Dimensions & Tires | |
|---|---|
Wheelbase | 110.2 inches
279 cm |
Weight | 19610 lbs
8895 kg |
Front tire | 420/90R30 |
Rear tire | 480/80R46 |
Full dimensions and tires ...  | |
John Deere 6215R attachments | |
|---|---|
front-end loader | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 200 |
| 240 OptOptional |
Charging volts | 14 |
Battery volts | 12 |
References | |
|---|---|
 | |
Operator's Manual 6145R, 6155R, 6155RH, 6175R, 6195R and 6125R (OMAL218252) published in 2016 | |
Operator's Manual 6145R, 6155R, 6155RH, 6175R, 6195R and 6125R (OMAL225966) published in 2021 |
