john deere 7310r
 | 2015 - 2019
7R SeriesRow-Crop tractor | 2015 - 2019 | 7R Series | Row-Crop tractor |
|---|---|---|---|---|
2015 - 2019 | ||||
7R Series | ||||
Row-Crop tractor | ||||
2015 - 2019 | |
|---|---|
7R Series | |
Row-Crop tractor |
Production | |
|---|---|
Manufacturer | John Deere |
Row-Crop tractor | |
Built in Waterloo, Iowa, USA | |
John Deere 7310R Engine | |
|---|---|
John Deere 9.0L 6-cyl diesel | |
Exhaust fluid (DEF) | 6.8 gal
25.7 L |
Engine details ...  | |
John Deere 7310R Transmissions | |
|---|---|
23-speed full power shift | |
infinitely variable transmission | |
Transmission details ...  |
John Deere 7310R Power | |
|---|---|
Engine (gross) | 310 hp
231.2 kW |
PTO (claimed) | 260 hp
193.9 kW |
Drawbar (tested) | 255.61 hp
190.6 kW |
PTO (tested) | 309.83 hp
231.0 kW |

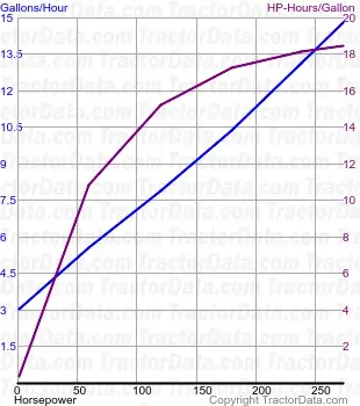

Performance test details ...  | |
Mechanical | |
|---|---|
Four-wheel drive | |
Final drives | inboard planetary |
Differential lock | full-locking electro-hydraulic rear |
| limited slip front |
| electro-hydraulic front (optional) |
Steering | hydrostatic power |
| ActiveCommand Steering optional |
CommandView III cab standard with air-conditioning. Optional premium cab with seat or cab suspension, right-hand windshield wiper, and electric mirror control. | |
Photos | |
|---|---|
 | |
John Deere 7310R photos...  |
Hydraulics | |
|---|---|
Type | closed-center pressure and flow compensated |
Pressure | 2958 psi
204.0 bar |
Rear valves | 3 to 6 |
Pump flow | 43 gpm
162.8 lpm |
| 59 gpm*Optional. Deere advertised 59 GPM as the flow rate of the 85cc pump but the tested rate was 58.3 GPM.
223.3 lpm |
Rear SCV flow | 35 gpm
132.5 lpm |
Front SCV flow | 33 gpm
124.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | III/IIIN |
Control | electro-hydraulic draft sensing |
Rear lift | 22500 lbs
10206 kg |
Rear Arms | hydraulic center link (optional) |
Front Hitch | IIIN (optional) |
Front lift (at ends) | 11464 lbs
5200 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 1000 (1.75) |
Front PTO | independent |
Front PTO Type | 1000 (1.375) |
| 1000 (1.75) |
Dimensions & Tires | |
|---|---|
Wheelbase | 115 inches
292 cm |
Full dimensions and tires ...  | |
John Deere 7310R attachments | |
|---|---|
front-end loader | |
Attachment details ...  |
7310R Serial Numbers | |
|---|---|
Location: | Right side of tractor frame above front axle. |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 200 |
| 240 (optional) |
Batteries | 2 |
Battery CCA | 925 |
Battery volts | 12 |
Battery Group | 31 |
