john deere 8410
 | 1999 - 2002
8000 Ten SeriesRow-Crop tractor | 1999 - 2002 | 8000 Ten Series | Row-Crop tractor |
|---|---|---|---|---|
1999 - 2002 | ||||
8000 Ten Series | ||||
Row-Crop tractor | ||||
1999 - 2002 | |
|---|---|
8000 Ten Series | |
Row-Crop tractor |
Production | |
|---|---|
Manufacturer | John Deere |
Row-Crop tractor | |
Built in Waterloo, Iowa, USA | |
Variants | |
|---|---|
8410 | wheeled tractor |
8410T | crawler tractor |
John Deere 8410 Engine | |
|---|---|
John Deere 8.1L 6-cyl diesel | |
Fuel tank | 135 gal
511.0 L |
Engine details ...  | |
John Deere 8410 Transmission | |
|---|---|
16-speed | |
Transmission details ...  |
John Deere 8410 Power | |
|---|---|
PTO (claimed) | 235 hp
175.2 kW |
Drawbar (tested) | 203.49 hp
151.7 kW |
PTO (tested) | 269.98 hp
201.3 kW |

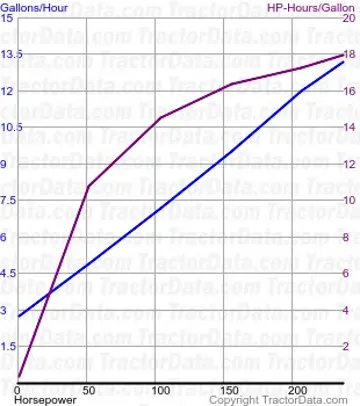

Performance test details ...  | |
Mechanical | |
|---|---|
Four-wheel drive | |
Cab standard. |
Photos | |
|---|---|
 | |
John Deere 8410 photos...  |
Hydraulics | |
|---|---|
Type | closed center PFC |
Valves | 3 to 5 |
Pump flow | 30 gpm
113.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | III, IIIN |
Rear lift | 11,700 lbs
5307 kg |
| 15,650 lbs (optional)
7098 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 1000 |
| 540/1000 OptOptional |
Dimensions & Tires | |
|---|---|
Wheelbase | 116.9 inches
296 cm |
Weight | 20,440 lbs
9271 kg |
Full dimensions and tires ...  | |
8410 Serial Numbers | |
|---|---|
Location: | Rear of tractor |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 140 |
Batteries | 2 |
Battery CCA | 1,850 |
Battery volts | 12 |
References | |
|---|---|
 | |
8000/8000T TEN Series Tractors Product Information Handbook published in 1999, by John Deere |
