john deere 9300
 | 1997 - 2001
9000 SeriesFour-wheel Drive (4WD) tractor | 1997 - 2001 | 9000 Series | Four-wheel Drive (4WD) tractor |
|---|---|---|---|---|
1997 - 2001 | ||||
9000 Series | ||||
Four-wheel Drive (4WD) tractor | ||||
1997 - 2001 | |
|---|---|
9000 Series | |
Four-wheel Drive (4WD) tractor |
Transmission options | |
|---|---|
12-speed partially synchronized | |
24-speed partial power shift | |
12-speed full power shift |
Transmission | |
|---|---|
Transmission | John Deere Syncro |
Type | partially synchronized |
Gears | 12 forward and 3 reverse |
Oil capacity | 147.2 qts (100mm axle)
139.3 L |
| 151.6 qts (110mm axle)
143.5 L |
| 151.2 qts (PTO 100mm axle)
143.1 L |
| 155.6 qts (PTO 110mm axle)
147.3 L |
| 140 qts (SN030001+)
132.5 L |
Three speeds (1-3 and reverse) in four ranges (A-D). Synchronized shifting between speeds using the clutch. Tractor must be stopped, and clutch used, to shift ranges. Reverse is not available in the highest (D) range. | |

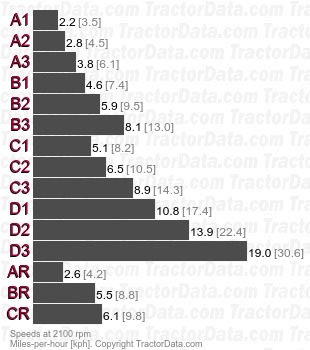

Speeds | |
|---|---|
With 620/70R42 tires. | |
 |
Transmission | |
|---|---|
Transmission | John Deere PowrSync |
Type | partial power shift |
Gears | 24 forward and 6 reverse |
Oil capacity | 147.2 qts (100mm axle)
139.3 L |
| 151.6 qts (110mm axle)
143.5 L |
| 151.2 qts (PTO 100mm axle)
143.1 L |
| 155.6 qts (PTO 110mm axle)
147.3 L |
| 140 qts (SN030001+)
132.5 L |
Three speeds (1, 2, 3 and reverse) in four ranges (A-D) plus high-low power shift. Speeds and ranges may be shifted on the move, using the clutch. High-low power shift for each speed using lever. | |
Speeds | |
|---|---|
With 620/70R42 tires. | |
 |
Transmission | |
|---|---|
Transmission | John Deere PowerShift |
Type | full power shift |
Gears | 12 forward and 2 reverse |
Oil capacity | 64 qts (early)
60.6 L |
| 56 qts (SN030001+)
53.0 L |
| 60 qts (no PTO early)
56.8 L |
| 54 qts (no PTO late)
51.1 L |
| 120 qts (axles early)
113.6 L |
| 108 qts (axles SN030001+)
102.2 L |
Speeds | |
|---|---|
With 620/70R42 tires. | |
 |
