john deere 9530
 | 2007 - 2011
9030 SeriesFour-wheel Drive (4WD) tractor | 2007 - 2011 | 9030 Series | Four-wheel Drive (4WD) tractor |
|---|---|---|---|---|
2007 - 2011 | ||||
9030 Series | ||||
Four-wheel Drive (4WD) tractor | ||||
2007 - 2011 | |
|---|---|
9030 Series | |
Four-wheel Drive (4WD) tractor |
Engine Detail | |
|---|---|
John Deere | |
turbocharged aftercooled diesel | |
6-cylinder | |
liquid-cooled | |
Displacement | 826.7 ci
13.5 L |
Bore/Stroke | 5.197x6.496 inches
132 x 165 mm |
Emissions | Tier III |
Power | 475 hp
354.2 kW |
Air cleaner | aspirator and dual paper elemnts |
Compression | 16.0:1 |
Rated RPM | 2100 |
Starter volts | 12 |
Coolant capacity | 70 qts
66.2 L |
Engine Oil | |
|---|---|
 | |
Oil capacity | 63.4 qts
60.0 L |

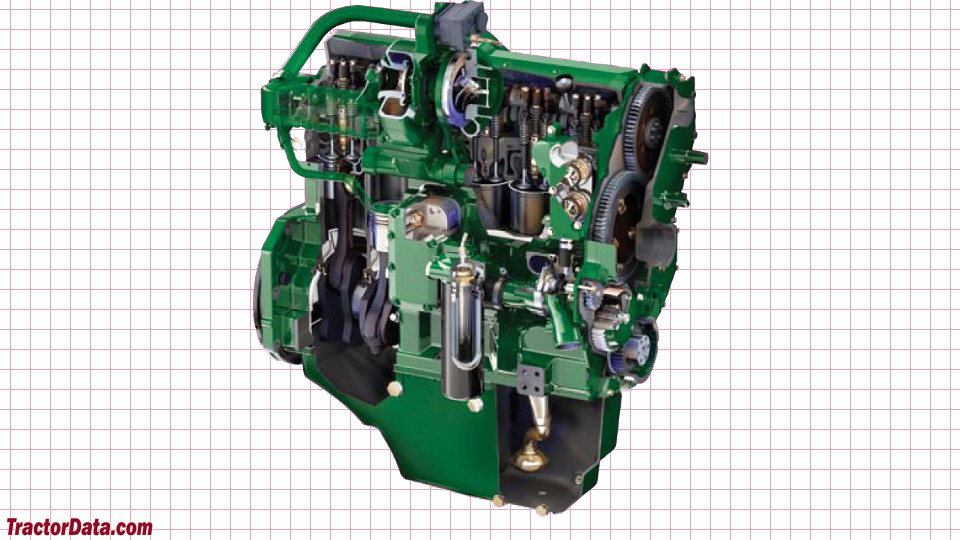

John Deere 9530 Engine | |
|---|---|
 |
