john deere 9570rx
 | 2016 - 2021
9R SeriesArticulated Crawler tractor | 2016 - 2021 | 9R Series | Articulated Crawler tractor |
|---|---|---|---|---|
2016 - 2021 | ||||
9R Series | ||||
Articulated Crawler tractor | ||||
2016 - 2021 | |
|---|---|
9R Series | |
Articulated Crawler tractor |
OCED Tractor Test 2173 | ||
|---|---|---|
 | | |
| ||
|
|---|
OCED Tractor Test 2173 | |
|---|---|
Diesel 18-speed crawler
April 7 - 19, 2017
Link: OCED Tractor Test 2173 file | |
PTO performance | |
Max power | 355.97 hp
265.4 kW |

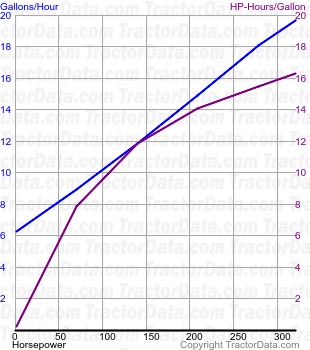

Fuel use | 19.2 gal/hour
72.7 l/hour |
Power at rated engine speed | 320.42 hp
238.9 kW |
Fuel use | 19.7 gal/hour
74.6 l/hour |
Power at rated PTO speed | 347.67 hp
259.3 kW |
Fuel use | 20.0 gal/hour
75.7 l/hour |
Drawbar performance | |
Max power | 446.57 hp
333.0 kW |
Fuel use | 28.5 gal/hour
107.9 l/hour |
Gear 7 used for power test. | |
Max pull | 48424 lbs
21965 kg |
Gear 2 used for pull test. | |
