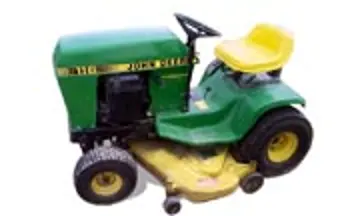

john deere lawn tractors 116h
 | 1983 - 1985
100 Lawn SeriesLawn tractor | 1983 - 1985 | 100 Lawn Series | Lawn tractor |
|---|---|---|---|---|
1983 - 1985 | ||||
100 Lawn Series | ||||
Lawn tractor | ||||
1983 - 1985 | |
|---|---|
100 Lawn Series | |
Lawn tractor |
Production | |
|---|---|
Manufacturer | John Deere |
Lawn tractor | |
Built in Horicon, Wisconsin, USA | |
Original price was $3,239 in 1983 with 38-inch deck | |
John Deere 116H Engine | |
|---|---|
16HP Briggs & Stratton 655cc 2-cyl gasoline | |
Fuel tank | 2.5 gal
9.5 L |
Engine details ...  | |
John Deere 116H Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. |
Photos | |
|---|---|
 | |
John Deere 116H photos...  |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 44.7 inches
113 cm |
Weight | 510 lbs
231 kg |
Front tire | 15x6.00-6 |
Rear tire | 18x8.50-8 |
Full dimensions and tires ...  | |
John Deere 116H attachments | |
|---|---|
38" mid-mount mower deck | |
46" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |
116H Serial Numbers | |
|---|---|
1983 | M00116C232001 |
1984 | M00116C290001 |
1985 | M00116C330001 |
1983 | M00116D236001 (46-inch deck) |
1984 | M00116D300001 (46-inch deck) |
1985 | M00116D338001 (46-inch deck) |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 5 |
Battery volts | 12 |
References | |
|---|---|
 | |
Operator's Manual 108, 111,112L ,116, and 116H (OMM88424-J4) published in 1984 | |
Lawn Tractors & Riding Mowers 1983 published by John Deere | |
Riding Mowers & Lawn Tractors published in 1985, by John Deere | |
Consumer Products Price List published in 1983, by John Deere | |
Grounds Care Equipment Purchasing Guide published in 1983, by John Deere |
 | |
|---|---|
