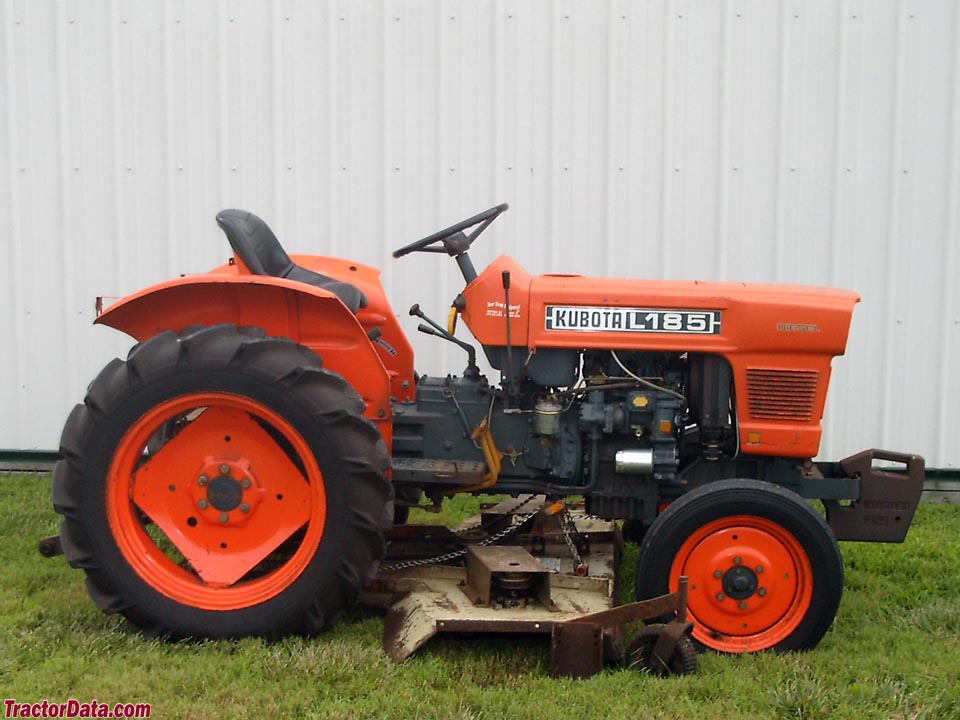

kubota l185
 | 1977 - 1982
Compact Utility tractor | 1977 - 1982 | Compact Utility tractor |
|---|---|---|---|
1977 - 1982 | |||
Compact Utility tractor | |||
1977 - 1982 | |
|---|---|
Compact Utility tractor |
Production | |
|---|---|
Manufacturer | Kubota |
Compact Utility tractor | |
Built in Japan | |
Original price was $6,400 in 1982 | |
Variants | |
|---|---|
L185TP | 2WD turf |
L185FP | 2WD ag |
L185DT | 4WD |
Kubota L185 Engine | |
|---|---|
Kubota 0.7L 2-cyl diesel | |
Fuel tank | 5.8 gal
22.0 L |
Engine details ...  | |
Kubota L185 Transmissions | |
|---|---|
8-speed gear | |
16-speed creeper | |
Transmission details ...  |
Kubota L185 Power | |
|---|---|
Engine | 17 hp
12.7 kW |
PTO (claimed) | 15 hp
11.2 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Manual steering | |
Open operator station. |
Photos | |
|---|---|
 | |
Kubota L185 photos...  |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position control |
| draft control OptOptional |
Rear lift (at ends) | 2200 lbs
997 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | transmission |
Rear PTO Type | 540/700/1000 (1.375) |
Engine RPM | 540@2430 |
| 702@2430 |
| 1007@2430 |
Front PTO Type | 2430 |
Dimensions & Tires | |
|---|---|
Wheelbase | 60 inches
152 cm |
Weight | 1595 to 1785 pounds |
Front tire | 4.00-15 |
2WD Rear tire | 9.5-24 |
Full dimensions and tires ...  | |
Kubota L185 attachments | |
|---|---|
snowblower | |
front-end loader | |
backhoe | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Mid-Mount Mowers B/L Series published in 1978, by Kubota | |
New L185DT Tractor published in 1978, by Kubota | |
New L185FP Tractor published in 1978, by Kubota | |
New L185TP Tractor published in 1978, by Kubota |
