kubota l3010
 | 1998 - 2002
Grand L10 SeriesCompact Utility tractor | 1998 - 2002 | Grand L10 Series | Compact Utility tractor |
|---|---|---|---|---|
1998 - 2002 | ||||
Grand L10 Series | ||||
Compact Utility tractor | ||||
1998 - 2002 | |
|---|---|
Grand L10 Series | |
Compact Utility tractor |
Transmission options | |
|---|---|
8-speed mechanical shuttle | |
hydrostatic | |
8-speed automatic fully synchronized | |
16-speed creeper |

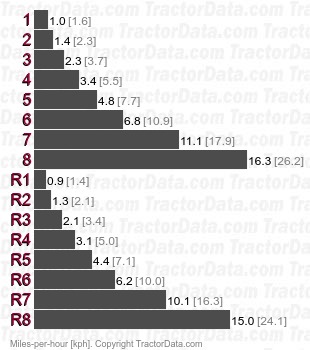

Transmission | |
|---|---|
Transmission | FST |
Type | mechanical shuttle |
Gears | 8 forward and reverse |
Clutch | dry disc |
Four synchronized gears in two ranges. Synchronized shuttle shifting. | |
Speeds | |
|---|---|
 |
Transmission | |
|---|---|
Type | hydrostatic |
Gears | infinite forward and reverse (3-range) |
Speeds | |
|---|---|
 |
Transmission | |
|---|---|
Transmission | Glide Shift (GST) |
Type | automatic fully synchronized |
Gears | 8 forward and reverse |
Clutch | dry disc |
The Glide Shift allows clutchless automatic shifting between gears. | |
Speeds | |
|---|---|
 |
Transmission | |
|---|---|

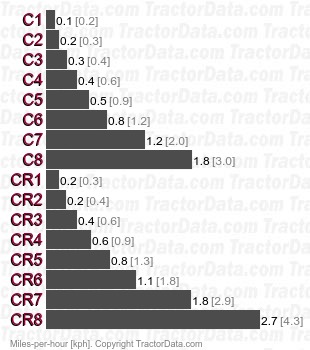

Type | creeper |
Gears | 16 forward and reverse |
Optional creeper range available for the FST or GST transmission. | |
Speeds | |
|---|---|
 |
