kubota m5700
 | 2001 - 2005
M SeriesUtility tractor | 2001 - 2005 | M Series | Utility tractor |
|---|---|---|---|---|
2001 - 2005 | ||||
M Series | ||||
Utility tractor | ||||
2001 - 2005 | |
|---|---|
M Series | |
Utility tractor |
Production | |
|---|---|
Manufacturer | Kubota |
Utility tractor | |
Kubota M5700 Engine | |
|---|---|
Kubota 2.7L 5-cyl diesel | |
Engine details ...  |
Kubota M5700 Transmission | |
|---|---|
8-speed synchronized shuttle | |
Transmission details ...  |
Kubota M5700 Power | |
|---|---|
Engine | 61.6 hp
45.9 kW |
PTO (claimed) | 52 hp
38.8 kW |
Drawbar (tested) | 48.1 hp
35.9 kW |
PTO (tested) | 52.6 hp
39.2 kW |

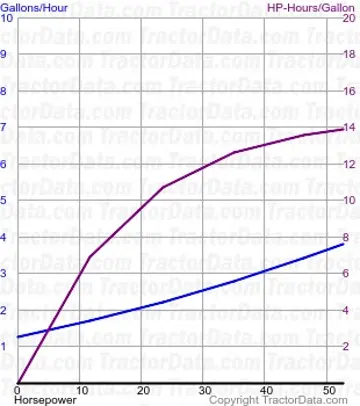

Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Wet disc brakes | |
Two-post folding ROPS. Cab optional with air-conditioning. |
Photos | |
|---|---|
 | |
Kubota M5700 photos...  |
Capacity | |
|---|---|
ROPS Fuel | 17.2 gal
65.1 L |
Cab Fuel | 25.1 gal
95.0 L |
Hydraulic system | 13.7 gal
51.9 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 13.7 gal
51.9 L |
Valves | 1 to 3 |
Pump flow | 11 gpm
41.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Control | position control and top-link draft sensing |
Rear lift (at 24"/610mm) | 2840 lbs*Advertised lift was 3310 pounds but the Kubota M5700 only achieves 2840 pounds during testing.
1288 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
ROPS Wheelbase | 78.7 inches
199 cm |
Cab Wheelbase | 81.7 inches
207 cm |
Weight | 3858 to 4608 pounds |
Front tire | 7.50-16 |
Rear tire | 16.9-28 |
Full dimensions and tires ...  | |
Kubota M5700 attachments | |
|---|---|
front-end loader | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
ROPS Charging amps | 45 |
Cab Charging amps | 60 |
Battery volts | 12 |
References | |
|---|---|
 | |
Diesel Tractor M4900/M5700/M6800/M8200/M9000 published in 2003, by Kubota |
