kubota m7 132
 | 2018 - 2020
M7-2 SeriesRow-Crop tractor | 2018 - 2020 | M7-2 Series | Row-Crop tractor |
|---|---|---|---|---|
2018 - 2020 | ||||
M7-2 Series | ||||
Row-Crop tractor | ||||
2018 - 2020 | |
|---|---|
M7-2 Series | |
Row-Crop tractor |
Production | |
|---|---|
Manufacturer | Kubota |
Row-Crop tractor | |
Built in Bierne, France | |
Kubota M7-132 Engine | |
|---|---|
Kubota 6.1L 4-cyl diesel | |
Fuel tank | 87.2 gal
330.1 L |
Exhaust fluid (DEF) | 10 gal
37.9 L |
Engine details ...  | |
Kubota M7-132 Transmissions | |
|---|---|
30-speed 6-speed power shift | |
infinitely variable transmission | |
54-speed creeper | |
Transmission details ...  |
Kubota M7-132 Power | |
|---|---|
Engine (gross) | 130 hp
96.9 kW |
Engine (max) | 150 hp
111.9 kW |
Drawbar (tested) | 84.54 hp
63.0 kW |
PTO (tested) | 122.40 hp
91.3 kW |

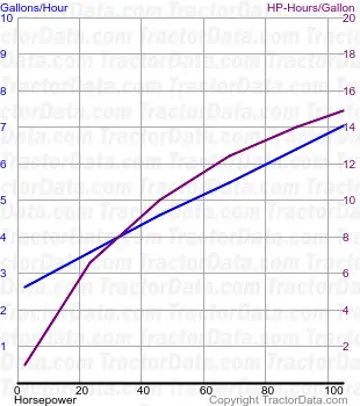

Performance test details ...  | |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Hydraulic wet disc brakes | |
Cab standard with air-conditioning. |
Photos | |
|---|---|
 | |
Kubota M7-132 photos...  |
Hydraulics | |
|---|---|
Type | open center |
| closed center OptOptional |
Pump flow | 21.1 gpm (open center)
79.9 lpm |
| 29 gpm (closed center)
109.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | III |
Control | lower-link draft sensing |
Rear lift (at ends) | 20723 lbs
9399 kg |
Front lift | 8598 lbs
3900 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Engine RPM | 540E@1608 |
| 540@2005 |
| 1000E@1600 |
| 1000@1995 |
Front PTO | independent |
Front PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 107.1 inches
272 cm |
Weight | 13889 lbs
6300 kg |
Front tire | 540/65R28 |
Rear tire | 650/65R38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Battery volts | 12 |
References | |
|---|---|
 | |
M7002 Series published in 2018, by Kubota | |
M7-2 Series published in 2021, by Kubota |
