lamborghini 1506
 | 1984 - 1994
Row-Crop tractor | 1984 - 1994 | Row-Crop tractor |
|---|---|---|---|
1984 - 1994 | |||
Row-Crop tractor | |||
1984 - 1994 | |
|---|---|
Row-Crop tractor |
Production | |
|---|---|
Manufacturer | Lamborghini (a part of SAME) |
Row-Crop tractor | |
Lamborghini 1506 Engine | |
|---|---|
Lamborghini 6.8L 6-cyl diesel | |
Fuel tank | 60.8 gal
230.1 L |
Engine details ...  | |
Lamborghini 1506 Transmissions | |
|---|---|
24-speed | |
16-speed creeper | |
Transmission details ...  |
Lamborghini 1506 Power | |
|---|---|
Engine | 145 hp
108.1 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Final drives | planetary |
Differential lock | mechanical front and rear |
Power steering | |
Hydraulic wet disc brakes | |
Trailer brakes | hydraulic OptOptional |
Cab available with air-conditioning. | |
Photos | |
|---|---|
 | |

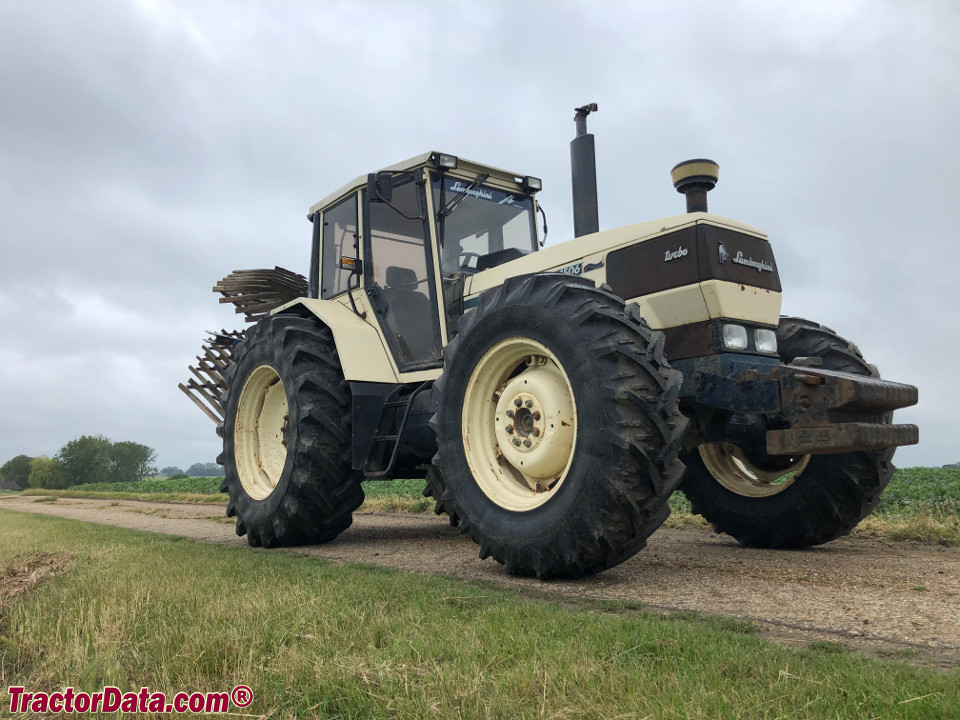

Lamborghini 1506 photos...  |
Hydraulics | |
|---|---|
Pump flow | 16.7 gpm
63.2 lpm |
Tractor hitch | |
|---|---|
Rear Type | III/II |
Control | position and draft control |
Rear lift | 11904 lbs
5399 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic wet disc |
Rear PTO Type | 540/1000 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 112.4 inches
285 cm |
Weight | 12345 to 12786 pounds |
Front tire | 16.9/14-30 |
Rear tire | 20.8-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
ROPS Charging amps | 45 |
Cab Charging amps | 55 |
Battery volts | 12 |
Battery AH | 143 |
References | |
|---|---|
 | |
1506 Turbo published in 1986, by Lamborghini |
