ls mt122
 | 2016 -
MT1 SeriesSub-Compact Utility tractor | 2016 - | MT1 Series | Sub-Compact Utility tractor |
|---|---|---|---|---|
2016 - | ||||
MT1 Series | ||||
Sub-Compact Utility tractor | ||||
2016 - | |
|---|---|
MT1 Series | |
Sub-Compact Utility tractor |
Production | |
|---|---|
Manufacturer | LS |
Sub-Compact Utility tractor | |
LS MT122 Engine | |
|---|---|
Yanmar 1.1L 3-cyl diesel | |
Fuel tank | 6.6 gal
25.0 L |
Engine details ...  | |
LS MT122 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
LS MT122 Power | |
|---|---|
Engine (gross) | 21.5 hp
16.0 kW |
PTO (claimed) | 15 hp
11.2 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Wet disc brakes | |
Two-post folding ROPS. |

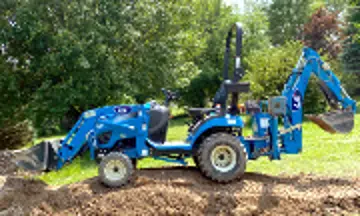

Photos | |
|---|---|
 | |
LS MT122 photos...  |
Hydraulics | |
|---|---|
Pump flow | 4.6 gpm
17.4 lpm |
Total flow | 6.7 gpm
25.4 lpm |
Steering flow | 2.1 gpm
7.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position control |
Rear lift (at ends) | 970 lbs
439 kg |
Rear lift (at 24"/610mm) | 728 lbs
330 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Mid PTO | independent |
Mid PTO Type | 2500 |
Dimensions & Tires | |
|---|---|
Wheelbase | 56 inches
142 cm |
Weight | 1433 lbs
650 kg |
Full dimensions and tires ...  | |
LS MT122 attachments | |
|---|---|
60" mid-mount mower deck | |
front-end loader | |
backhoe | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 40 |
Charging volts | 12 |
Battery volts | 12 |
References | |
|---|---|
 | |
MT1 Series published in 2016, by LS |
