massey ferguson 130
 | 1966 - 1972
Utility tractor | 1966 - 1972 | Utility tractor |
|---|---|---|---|
1966 - 1972 | |||
Utility tractor | |||
1966 - 1972 | |
|---|---|
Utility tractor |
Production | |
|---|---|
Manufacturer | Massey Ferguson |
Utility tractor | |
Original price was $3,564 in 1972 | |
Variants | |
|---|---|
Economy | no headlights |
Deluxe | headlights |
High Clearance | high crop |
Narrow | narrow width |
Vineyard | low-profile |
Massey Ferguson 130 Engine | |
|---|---|
Perkins 1.8L 4-cyl diesel | |
Engine details ...  |
Massey Ferguson 130 Transmission | |
|---|---|
8-speed gear | |
Transmission details ...  |
Massey Ferguson 130 Power | |
|---|---|
Engine | 30 hp
22.4 kW |
Drawbar (claimed) | 23 hp
17.2 kW |
PTO (claimed) | 27 hp
20.1 kW |
Drawbar (tested) | 22.82 hp
17.0 kW |
PTO (tested) | 26.96 hp
20.1 kW |

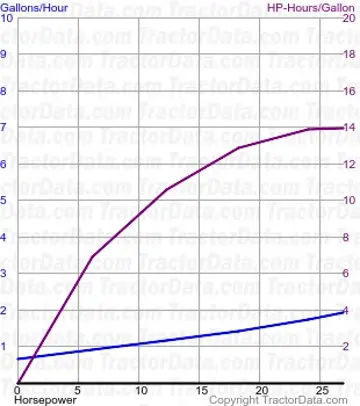

Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Differential mechanical disc brakes | |
Open operator station. |
Photos | |
|---|---|
 | |
Massey Ferguson 130 photos...  |
Capacity | |
|---|---|
Fuel | 12 gal
45.4 L |
Hydraulic system | 5.02 gal
19.0 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 5.02 gal
19.0 L |
Pressure | 1991 psi
137.3 bar |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift | 2231 lbs
1011 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live |
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@1890 |
Dimensions & Tires | |
|---|---|
Weight | 3210 lbs
1456 kg |
Front tire | 5x16 |
Rear tire | 10/12.4-28 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
MF 130 Tractor published in 1970, by Massey Ferguson | |
Installation & Operation of Basic & Auxiliary Hydraulic Systems (690 562 M2) published in 1968 |
