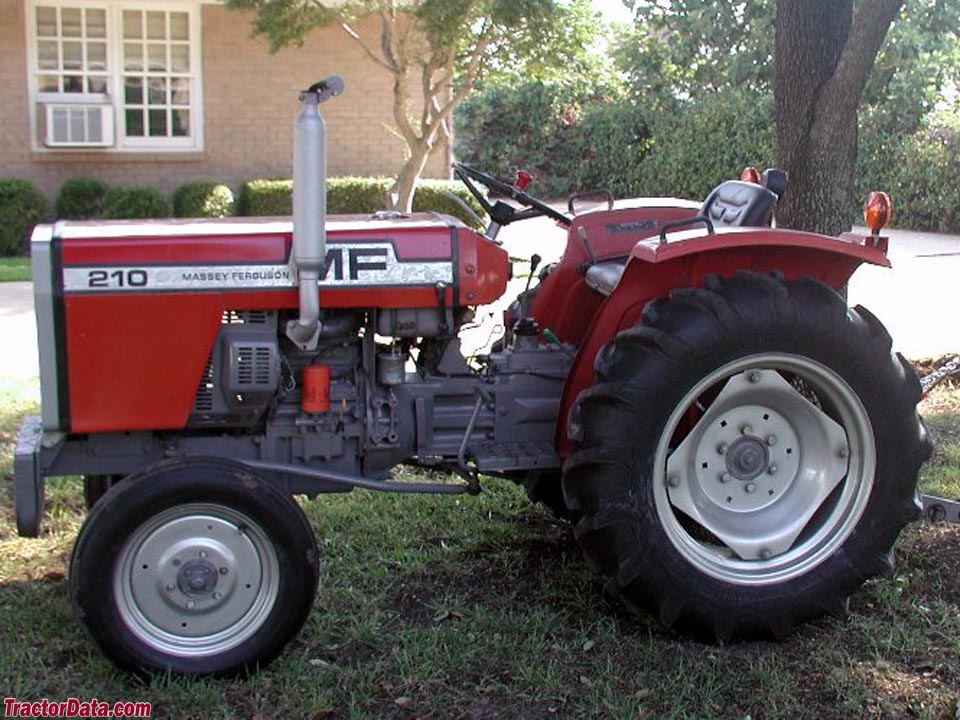

massey ferguson 210
 | 1978 - 1984
Compact Utility tractorHinomoto built | 1978 - 1984 | Compact Utility tractor | Hinomoto built |
|---|---|---|---|---|
1978 - 1984 | ||||
Compact Utility tractor | ||||
Hinomoto built | ||||
1978 - 1984 | |
|---|---|
Compact Utility tractor | |
Hinomoto built |
Production | |
|---|---|
Distributor | Massey Ferguson |
Manufacturer | Hinomoto |
Compact Utility tractor | |
Built in Osaka, Japan | |
Original price was $7,800 in 1984 | |
The Massey-Ferguson 210 is similar to the Allis 5020, the Simplicity 9523, and the Hinomoto E23. | |
Variants | |
|---|---|
210 | 2WD |
210-4 | 4WD |
Massey Ferguson 210 Engine | |
|---|---|
Toyosha 1.3L 2-cyl diesel | |
Fuel tank | 7.1 gal
26.9 L |
Engine details ...  | |
Massey Ferguson 210 Transmission | |
|---|---|
12-speed gear | |
Transmission details ...  |
Massey Ferguson 210 Power | |
|---|---|
Engine | 25 hp
18.6 kW |
PTO (claimed) | 22 hp
16.4 kW |
Drawbar (tested) | 17.28 hp
12.9 kW |
PTO (tested) | 21.96 hp
16.4 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Differential lock | mechanical rear |
Manual steering | |
Mechanical drum brakes | |
Open operator station. Two-post fixed ROPS available. | |
Photos | |
|---|---|
 | |
Massey Ferguson 210 photos...  |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 1700 psi
117.2 bar |
Pump flow | 5.4 gpm
20.4 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position control |
Power Take-off (PTO) | |
|---|---|
Rear PTO | transmission |
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@2327 |
Front PTO | independent OptOptional |
Clutch | electro-magnetic |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 60.4 inches
153 cm |
4WD Wheelbase | 59.4 inches
150 cm |
Weight | 2325 to 3180 pounds |
Front tire | 5.00-15 |
2WD Rear tire | 11.2/10-24 |
Full dimensions and tires ...  | |
Massey Ferguson 210 attachments | |
|---|---|
60" mid-mount mower deck | |
72" mid-mount mower deck | |
front-end loader | |
Attachment details ...  |
210 Serial Numbers | |
|---|---|
Location: | Serial number plate under the tractor instrument panel. |
1978 | 00101 |
1979 | 00961 |
1980 | 01711 |
1981 | 02700 |
1982 | 03892 |
1983 | 04231 |
1984 | 04902 |
1979 | 00101 (4WD) |
1980 | 00711 (4WD) |
1981 | 00764 (4WD) |
1982 | 01595 (4WD) |
1983 | 01915 (4WD) |
1984 | 02209 (4WD) |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 15 |
Battery volts | 12 |
References | |
|---|---|
 | |
Industrial Machinery Buyer's Guide published in 1980, by Massey Ferguson | |
Compact Tractor Attachment published in 1982, by Massey Ferguson | |
Loaders and Spreaders published in 1979, by Massey Ferguson | |
MF Compact Tractors published in 1979, by Massey Ferguson |
