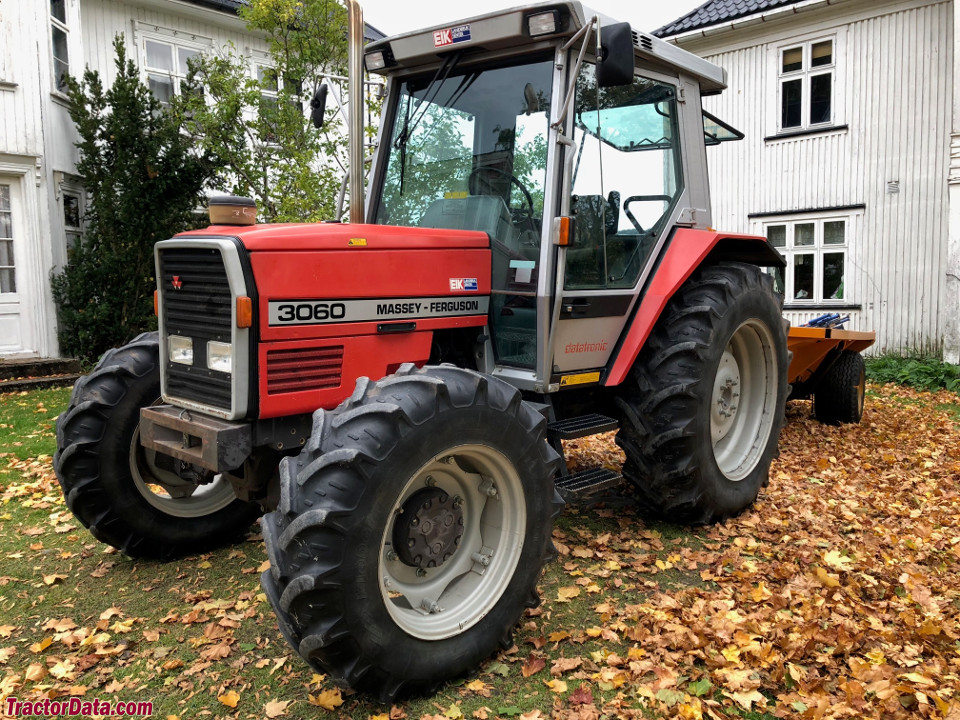

massey ferguson 3060

1986 - 1992

3000 Series

Row-Crop tractor

3000 Series

Row-Crop tractor

Manufacturer

Massey Ferguson

Row-Crop tractor

Original price was $32,500 in 1992

Perkins 4.1L 4-cyl diesel

16-speed fully synchronized

32-speed two-speed power shift

Engine

77 hp 57.4 kW

PTO (claimed)

68 hp 50.7 kW

Two- or four-wheel drive

Final drives

inboard planetary

Power steering

Hydraulic wet disc brakes

Two-post fixed ROPS. Cab with optional air-conditioning.

Fuel

39 gal 147.6 L

Hydraulic system

15.9 gal 60.2 L

Type

open center

Capacity

15.9 gal 60.2 L

Pressure

2610 psi 180.0 bar

Valves

2 to 4

Pump flow

13.2 gpm 50.0 lpm

Rear Type

II

Control

position control and lower-link draft sensing

Rear lift (at ends)

7926 lbs 3595 kg

Rear lift (at 24"/610mm)

5100 lbs 2313 kg

Rear PTO

independent

Rear PTO Type

540/1000

2WD Wheelbase

93.3 inches 236 cm

4WD Wheelbase

93.4 inches 237 cm

Weight

7529 to 9310 pounds

Front tire

7.50-16

Rear tire

18.4-30 (2WD)

front-end loader

Ground

negative

Charging system

alternator

Charging amps

55

Batteries

2

Battery CCA

420

Battery volts

12

Loaders - Compact and Agricultural published in 1989, by Massey Ferguson

MF 3000 & 3100 Series published in 1991, by Massey Ferguson

MF 3000 Product Information Manual (0783/0986) published in 1986*

*Publication contains known errors.
