massey ferguson 4355
 | 2001 - 2003
4300 SeriesUtility tractor | 2001 - 2003 | 4300 Series | Utility tractor |
|---|---|---|---|---|
2001 - 2003 | ||||
4300 Series | ||||
Utility tractor | ||||
2001 - 2003 | |
|---|---|
4300 Series | |
Utility tractor |
Production | |
|---|---|
Manufacturer | Massey Ferguson (a part of AGCO) |
Utility tractor | |
Built in Coventry, England | |
Massey Ferguson 4355 Engine | |
|---|---|
Perkins 4.0L 4-cyl diesel | |
Cab Fuel tank | 33.6 gal
127.2 L |
ROPS Fuel tank | 34.3 gal
129.8 L |
Cab Fuel tank | 50 galOptOptional
189.2 L |
ROPS Fuel tank | 52.8 galOptOptional
199.8 L |
Engine details ...  | |
Massey Ferguson 4355 Transmissions | |
|---|---|
12-speed gear | |
12-speed power shuttle | |
24-speed power shuttle | |
Transmission details ...  |
Massey Ferguson 4355 Power | |
|---|---|
Engine (gross) | 100 hp
74.6 kW |
Engine (net) | 94 hp
70.1 kW |
PTO (claimed) | 85 hp
63.4 kW |
Drawbar (tested) | 65.6 hp
48.9 kW |
PTO (tested) | 84.1 hp
62.7 kW |

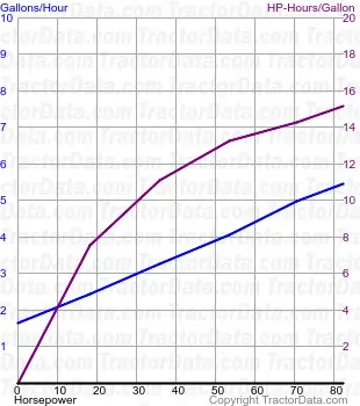

Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Differential lock | electro-hydraulic front and rear |
Power steering | |
Independent hydraulic wet disc brakes | |
Two-post folding ROPS. Cab optional with air-conditioning. | |
Photos | |
|---|---|
 | |
Massey Ferguson 4355 photos...  |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 3046 psi
210.0 bar |
Valves | 2 to 4 |
SCV flow | 10 gpm
37.9 lpm |
| 17.2 gpm*Combined flow
65.1 lpm |
| 17.4 gpm*Optional dedicated flow with power shuttle
65.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Rear lift (at 24"/610mm) | 3665 lbs
1662 kg |
| 4495 lbsOptOptional
2038 kg |
Rear Arms | telescopic lower links |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | hydraulic wet disc |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@1902 |
| 1000@2000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 93 inches
236 cm |
Weight | 6211 to 8430 pounds |
Full dimensions and tires ...  | |
Massey Ferguson 4355 attachments | |
|---|---|
front-end loader | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
ROPS Charging amps | 45 |
Cab Charging amps | 80 |
Cab Charging amps | 120 OptOptional |
Batteries | 2 |
Battery CCA | 590 |
Battery volts | 12 |
References | |
|---|---|
 | |
MF Loaders for Compact & Agricultural Tractors published in 2003, by Massey Ferguson | |
4300 Series Tractors published in 2001, by Massey Ferguson | |
4300 Series Tractors published in 2002, by Massey Ferguson | |
MF 4300 Series Orchard Cab Tractors published in 2001, by Massey Ferguson |
