massey ferguson 4840
 | 1978 - 1983
4000 4WD SeriesFour-wheel Drive (4WD) tractor | 1978 - 1983 | 4000 4WD Series | Four-wheel Drive (4WD) tractor |
|---|---|---|---|---|
1978 - 1983 | ||||
4000 4WD Series | ||||
Four-wheel Drive (4WD) tractor | ||||
1978 - 1983 | |
|---|---|
4000 4WD Series | |
Four-wheel Drive (4WD) tractor |
Transmission options | |
|---|---|
18-speed partial power shift | |
12-speed gear |
Transmission | |
|---|---|
Type | partial power shift |
Gears | 18 forward and 6 reverse |
Clutch | wet disc with four 14-inch plates |
Oil capacity | 44 qts
41.6 L |
Three gears (1-3) in two ranges (high/low) with three-speed power shift (low/intermediate/high). | |
Speeds | |
|---|---|
With 23.1x34 duals. | |
 |

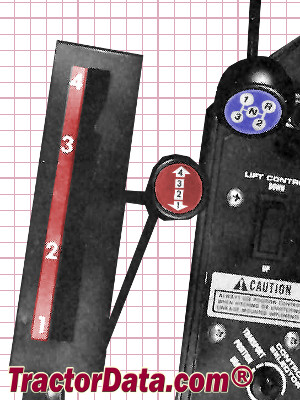

Shift Pattern | |
|---|---|
 |
Massey Ferguson 4840 Transmission | |
|---|---|
 |
Transmission | |
|---|---|
Type | gear |
Gears | 12 forward and 4 reverse |
Four gears in three ranges, plus reverse range. | |
Speeds | |
|---|---|
With 23.1-34 tires. | |
 |
Shift Pattern | |
|---|---|
 |
