massey ferguson 5470
![]() | 2005 - 2013
Année modèle 2005-20082008-2013
Série 5400Tracteur utilitaire | 2005 - 2013 | Modèle année 2005-20082008-2013 | Série 5400 | Tracteur utilitaire |
---|---|---|---|---|---|
2005 - 2013 | |||||
Modèle année 2005-20082008-2013 | |||||
Série 5400 | |||||
Tracteur utilitaire |
2005 - 2013 | |
---|---|
Modèle année 2005-20082008-2013 | |
Série 5400 | |
Tracteur utilitaire |
Production | |
---|---|
Fabricant | Massey Ferguson |
Tracteur utilitaire | |
Construit à Beauvais, France |
Variantes | |
---|---|
5470SA | bas et étroit, applications spéciales |
Moteur Massey Ferguson 5470 | |
---|---|
Sisu 4.4L diesel 4-cylindres | |
Réservoir de carburant | 38 gal
143,8 L |
| 55 gal (avec réservoir optionnel)
208,2 L |
Détails du moteur ... ![]() |
Transmission Massey Ferguson 5470 | |
---|---|
16 vitesses | |
Détails de la transmission... ![]() |
Massey Ferguson 5470 Power | |
---|---|
Moteur | 125 ch
93,2 kW |
Attelage (annoncé) | 89 ch
66,4 kW |
PTO (déclaré) | 105 ch
78,3 kW |
Attelage (testé) | 88,5 ch
66,0 kW |
PTO (testé) | 110,6 ch
82,5 kW |

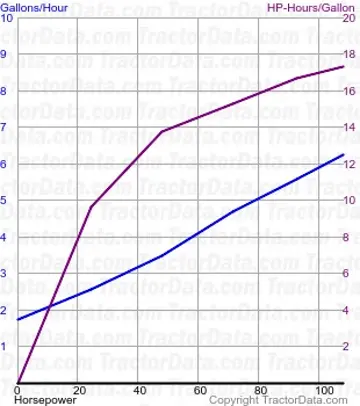

Détails du test de performance ... ![]() |
Mécanique | |
---|---|
Transmission à deux ou quatre roues | |
Direction assistée | |
Freins à disque humides indépendants hydrauliques | |
cabre standard |
Photos | |
---|---|
![]() | |
Photos Massey Ferguson 5470... ![]() |
Hydraulique | |
---|---|
Type | centre ouvert |
| fermé OptOptional |
Pression | 2900 psi
200,0 bar |
Vannes | 2 à 5 |
Débit total | 15 gpm (ouvert)
56,8 lpm |
| 34,8 gpm (débit combiné)
131,7 lpm |
| 29 gpm (fermé)
109,8 lpm |
Attelage de tracteur | |
---|---|
Type arrière | II |
Levage arrière (à 24"/610mm) | 7000 lbs
3175 kg |
Prise de Puissance (PTO) | |
---|---|
Prise de puissance arrière | indépendant |
Type de prise de force arrière | 540/1000 |
| 540E/1000 OptFacultatif |
Dimensions et Pneumatiques | |
---|---|
Empattement | 105,1 pouces
266 cm |
Poids | 9545 à 10385 livres |
Pneus avant | 10.00-16 |
Pneus arrière | 18.4R38 |
Dimensions complètes et pneus ... ![]() |
Électrique | |
---|---|
Sol | négatif |
Ampères de charge | 80 |
| 120 OptOptional |
CCA de la batterie | 505 |
Volts de la batterie | 12 |
Références | |
---|---|
![]() | |
Série 5400 publiée en 2006, par Massey Ferguson |
