massey ferguson 7622
 | 2013 - 2014
7600 SeriesRow-Crop tractor | 2013 - 2014 | 7600 Series | Row-Crop tractor |
|---|---|---|---|---|
2013 - 2014 | ||||
7600 Series | ||||
Row-Crop tractor | ||||
2013 - 2014 | |
|---|---|
7600 Series | |
Row-Crop tractor |
Production | |
|---|---|
Manufacturer | Massey Ferguson (a part of AGCO) |
Row-Crop tractor | |
Built in Beauvais, France | |
Massey Ferguson 7622 Engine | |
|---|---|
Sisu 7.4L 6-cyl diesel | |
Engine details ...  |
Massey Ferguson 7622 Transmission | |
|---|---|
24-speed six-speed power shift | |
Transmission details ...  |
Massey Ferguson 7622 Power | |
|---|---|
Engine (net) | 200 hp
149.1 kW |
PTO (claimed) | 165 hp
123.0 kW |
Drawbar (tested) | 168.77 hp
125.9 kW |
PTO (tested) | 202.4 hp
150.9 kW |

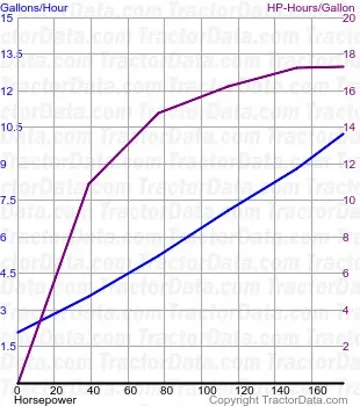

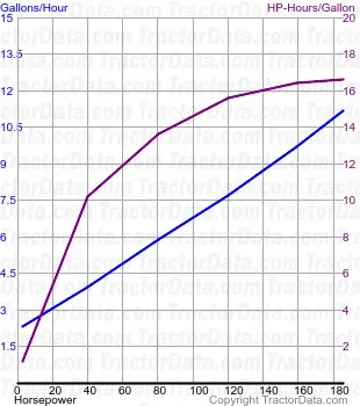

Performance test details ...  | |
Mechanical | |
|---|---|
Four-wheel drive | |
Final drives | inboard planetary |
Differential lock | electro-hydraulic standard |
Power steering | |
Hydraulic wet disc brakes | |
Trailer brakes | hydraulic (optional) |
| pneumatic (optional) |
Cab standard. Optional hydraulic OptiRide cab suspension. AGCOCOMMAND (optional); Auto-Guide 3000 (optional) | |
Photos | |
|---|---|
 | |
Massey Ferguson 7622 photos...  |
Capacity | |
|---|---|
Fuel | 114 gal
431.5 L |
Exhaust fluid (DEF) | 14 gal
53.0 L |
Hydraulic system | 26.4 gal
99.9 L |
Hydraulics | |
|---|---|
Type | closed-center load sensing (CCLS) |
Capacity | 26.4 gal
99.9 L |
Pressure | 2900 psi
200.0 bar |
Valves | 3 (mechanical) |
| 4 (2 mech, 2 elec) |
| 4 (electric) |
SCV flow | 24.3 gpm
92.0 lpm |
Total flow | 29 gpm
109.8 lpm |
| 39 gpmOptOptional
147.6 lpm |
Tractor hitch | |
|---|---|
Control | electronic lower link draft sensing |
Rear lift (at ends) | 14000 lbs (Dyna-6)
6350 kg |
| 13715 lbs (Dyna-VT)
6221 kg |
Front Hitch | optional |
Drawbar | Cat. II with drop pin |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic |
Rear PTO Type | 540/1000 (1.375) |
| 540/540E/1000 (1.375) |
| 540/1000/1000E (1.375) |
| 540/540E/1000/1000E (1.375) |
Engine RPM | 540@1890 (Dyna-6) |
| 540@2065 (Dyna-VT) |
| 540E@1524 (Dyna-6) |
| 540E@1590 (Dyna-VT) |
| 1000@2000 (Dyna-6) |
| 1000@2034 (Dyna-VT) |
| 1000E@1595 |
Dimensions & Tires | |
|---|---|
Wheelbase | 117.8 inches
299 cm |
Weight | 15990 to 18495 pounds |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 120 |
| 175 (option) |
| 240 (dual 120 option) |
Batteries | 2 |
Battery volts | 12 |
References | |
|---|---|
 | |
7600 Series published in 2013, by Massey Ferguson |
