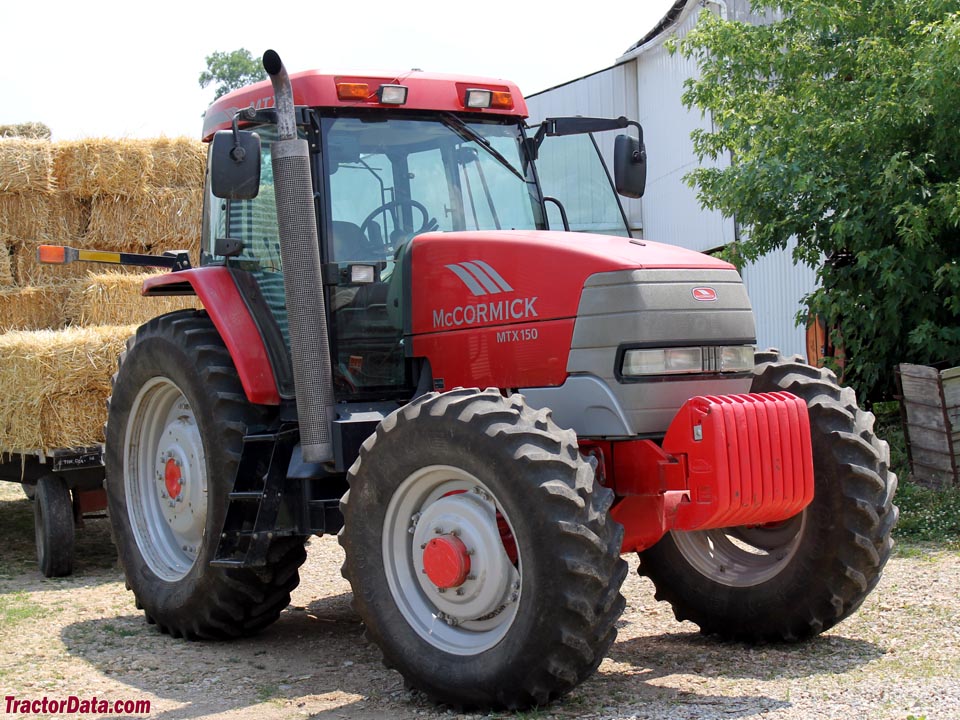

mccormick intl mtx150
 | 2004 - 2007
MTX SeriesRow-Crop tractor | 2004 - 2007 | MTX Series | Row-Crop tractor |
|---|---|---|---|---|
2004 - 2007 | ||||
MTX Series | ||||
Row-Crop tractor | ||||
2004 - 2007 | |
|---|---|
MTX Series | |
Row-Crop tractor |
Production | |
|---|---|
Manufacturer | McCormick Intl |
Row-Crop tractor | |
Built in Doncaster, England | |
McCormick Intl MTX150 Engine | |
|---|---|
Iveco 6.8L 6-cyl diesel | |
Fuel tank | 70.0 gal
264.9 L |
Engine details ...  | |
McCormick Intl MTX150 Transmissions | |
|---|---|
16-speed | |
32-speed | |
Transmission details ...  |
McCormick Intl MTX150 Power | |
|---|---|
Engine | 152 hp
113.3 kW |
PTO (claimed) | 130 hp
96.9 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Differential hydraulic wet disc brakes | |
Cab standard with air-conditioning. | |
Photos | |
|---|---|
 | |
McCormick Intl MTX150 photos...  |
Hydraulics | |
|---|---|
Type | pressure flow compensating |
Pump flow | 28.8 gpm
109.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | IIIN |
Control | electronic lower link draft sensing |
Rear lift | 14557 lbs
6603 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 107.1 inches
272 cm |
Weight | 13582 lbs
6160 kg |
Front tire | 16.9R28 |
Rear tire | 20.8R38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 95 |
| 120 (optional) |
Battery volts | 12 |
