murray lawn tractors 3696

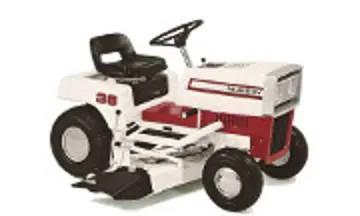

photo du tracteur Murray 3696
1974 - 1975 Tracteur tondeuse
1974 - 1975
Tracteur tondeuse
1974 - 1975
Tracteur tondeuse
1974 - 1975
Tracteur tondeuse
Production
Fabricant
Murray
Tracteur tondeuse
Construit à Lawrenceburg, Tennessee, États-Unis
Moteur Murray 3696
8HP Briggs & Stratton 1-cyl essence
Détails du moteur ...
Transmission Murray 3696
boîte de vitesses 3 rapports
Détails de la transmission...
Mécanique
Transmission intégrale
Direction manuelle
Freins à disque
Poste opérateur ouvert.
Prise de Puissance (PTO)
Prise de puissance intermédiaire
indépendant
Embrayage
manuel
Dimensions et Pneumatiques
Poids
497 lbs 225 kg
Pneus avant
15x6.00
Pneus arrière
18x9.50
Dimensions complètes et pneus ...
Attaches Murray 3696
lame de coupe centrale de 91 cm
lame
Détails de l'attelage...
3696 Numéros de Série
1974
4-3696
1975
5-3696
FAQ : Comment lire un tableau de numéros de série.
Électrique
Sol
négatif
Volts de la batterie
12
Références
3696 références littérature
Murray Mowers 1974
