new holland 3430
 | 1990 - 1998
30 SeriesUtility tractor | 1990 - 1998 | 30 Series | Utility tractor |
|---|---|---|---|---|
1990 - 1998 | ||||
30 Series | ||||
Utility tractor | ||||
1990 - 1998 | |
|---|---|
30 Series | |
Utility tractor |
Series map: 3430393046.0hp50.0hp**Estimated engine power for comparison only.
Note: the New Holland model 3430 is the same as the Ford 3430. The following data is from the 3430 listing. |
|---|
Production | |
|---|---|
Manufacturer | New Holland |
Utility tractor | |
Original price | $20,500 (1999 2WD ) |
$25,500 (1999 4WD ) | |
New Holland 3430 Engine | |
|---|---|
Ford 3.1L 3-cyl diesel | |
ROPS Fuel tank | 17.3 gal
65.5 L |
Cab Fuel tank | 25.3 gal
95.8 L |
Engine details ...  | |
New Holland 3430 Transmission | |
|---|---|
8-speed gear | |
Transmission details ...  |
New Holland 3430 Power | |
|---|---|
Engine | 46 hp
34.3 kW |
PTO (claimed) | 38 hp
28.3 kW |
Drawbar (tested) | 31.66 hp
23.6 kW |
PTO (tested) | 38.48 hp
28.7 kW |

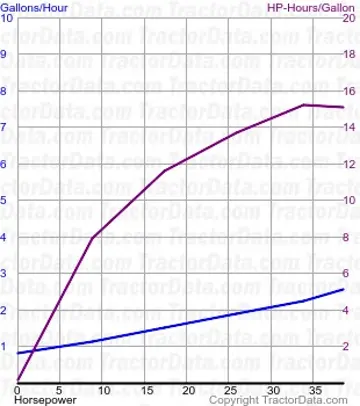

Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Differential lock | mechanical rear |
Power steering | |
Wet disc brakes | |
Two-post ROPS. Cab optional. | |
Hydraulics | |
|---|---|
Type | open center |
| closed center OptOptional |
Pressure | 2500 psi
172.4 bar |
Valves | 2 to 4 |
Pump flow | 7.7 gpm
29.1 lpm |
| 12.8 gpmOptOptional
48.4 lpm |
Steering flow | 3.6 gpm
13.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Control | position control with top link draft sensing |
Rear lift | 3080 lbs
1397 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 |
Engine RPM | 540@1800 |
| 540@1755 (shuttle) |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 84.5 inches
214 cm |
4WD Wheelbase | 84.1 inches
213 cm |
Weight | 4642 to 5490 pounds |
Front tire | 6.00-16 |
Rear tire | 13.6-28 |
Full dimensions and tires ...  | |
New Holland 3430 attachments | |
|---|---|
front-end loader | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 55 (early) |
| 45 (late) |
Battery CCA | 800 |
Battery volts | 12 |
References | |
|---|---|
 | |
Ford 30 Series published in 1995, by New Holland | |
30 Series Utility Tractors published in 1997, by New Holland |
