new holland t5060
 | 2008 - 2013
T5000 SeriesUtility tractor | 2008 - 2013 | T5000 Series | Utility tractor |
|---|---|---|---|---|
2008 - 2013 | ||||
T5000 Series | ||||
Utility tractor | ||||
2008 - 2013 | |
|---|---|
T5000 Series | |
Utility tractor |
Production | |
|---|---|
Manufacturer | New Holland |
Utility tractor | |
Built in Jesi, Italy | |
New Holland T5060 Engine | |
|---|---|
New Holland 4.5L 4-cyl diesel | |
Fuel tank | 33.5 gal
126.8 L |
Engine details ...  | |
New Holland T5060 Transmissions | |
|---|---|
12-speed mechanical shuttle | |
12-speed power shuttle | |
20-speed mechanical shuttle | |
24-speed power shuttle | |
Transmission details ...  |
New Holland T5060 Power | |
|---|---|
Engine (gross) | 105 hp
78.3 kW |
PTO (claimed) | 90 hp
67.1 kW |
Drawbar (tested) | 76.6 hp
57.1 kW |
PTO (tested) | 94.4 hp
70.4 kW |

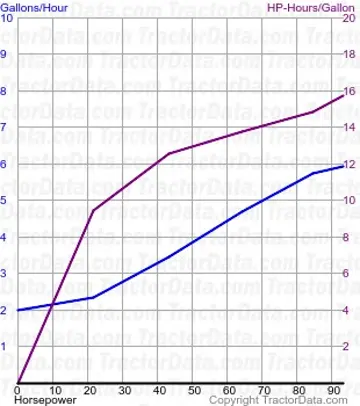

Performance test details ...  | |
Mechanical | |
|---|---|
Drive | 4x2 2WD |
| 4x4 MFWD 4WD (optional) |
Differential lock | mechanical rear standard |
| optional electrohydraulic front and rear |
Steering | hydrostatic power |
Hydraulic wet disc brakes | |
Flat deck platform with ROPS. Cab optional with heat and air-conditioning. | |
Photos | |
|---|---|
 | |
New Holland T5060 photos...  |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2,871 psi
198.0 bar |
Rear valves | 2 to 3 (open or closed center) |
Mid valves | 0 to 2 |
Pump flow | 16.1 gpm
60.9 lpm |
Steering flow | 10.4 gpm
39.4 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | mechanical lower-link draft sensing |
Rear lift (at 24"/610mm) | 5,475 lbs
2483 kg |
| 6,805 lbs (optional)
3086 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | mechanical |
| electrohydraulic optional |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@2199 |
| 1000@2261 |
Dimensions & Tires | |
|---|---|
Wheelbase | 92.5 inches
234 cm |
Full dimensions and tires ...  | |
New Holland T5060 attachments | |
|---|---|
front-end loader | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 120 |
Battery CCA | 960 |
Battery volts | 12 |
