new holland t9 565
 | 2014 - 2023
T9 SeriesFour-wheel Drive (4WD) tractor | 2014 - 2023 | T9 Series | Four-wheel Drive (4WD) tractor |
|---|---|---|---|---|
2014 - 2023 | ||||
T9 Series | ||||
Four-wheel Drive (4WD) tractor | ||||
2014 - 2023 | |
|---|---|
T9 Series | |
Four-wheel Drive (4WD) tractor |
Production | |
|---|---|
Manufacturer | New Holland (a part of CNH) |
Four-wheel Drive (4WD) tractor | |
Built in Fargo, North Dakota, USA | |
Variants | |
|---|---|
Steiger 500 | similar CaseIH model |
New Holland T9.565 Engine | |
|---|---|
FPT 12.9L 6-cyl diesel | |
Fuel tank | 325 gal
1230.1 L |
Exhaust fluid (DEF) | 42 gal
159.0 L |
Engine details ...  | |
New Holland T9.565 Transmission | |
|---|---|
17-speed full power shift | |
Transmission details ...  |
New Holland T9.565 Power | |
|---|---|
Engine (gross) | 500 hp
372.9 kW |
Engine (max) | 550 hp
410.1 kW |
PTO (claimed) | 435 hp
324.4 kW |
Drawbar (tested) | 417.77 hp
311.5 kW |
PTO (tested) | 504.56 hp
376.3 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power articulated |
Wet disc brakes | |
Trailer brakes | hydraulic OptOptional |
Cab standard with air-condioning. Optional Comfort Ride cab suspension. ISOBUS compliant; Intelliview IV; IntelliSteer | |

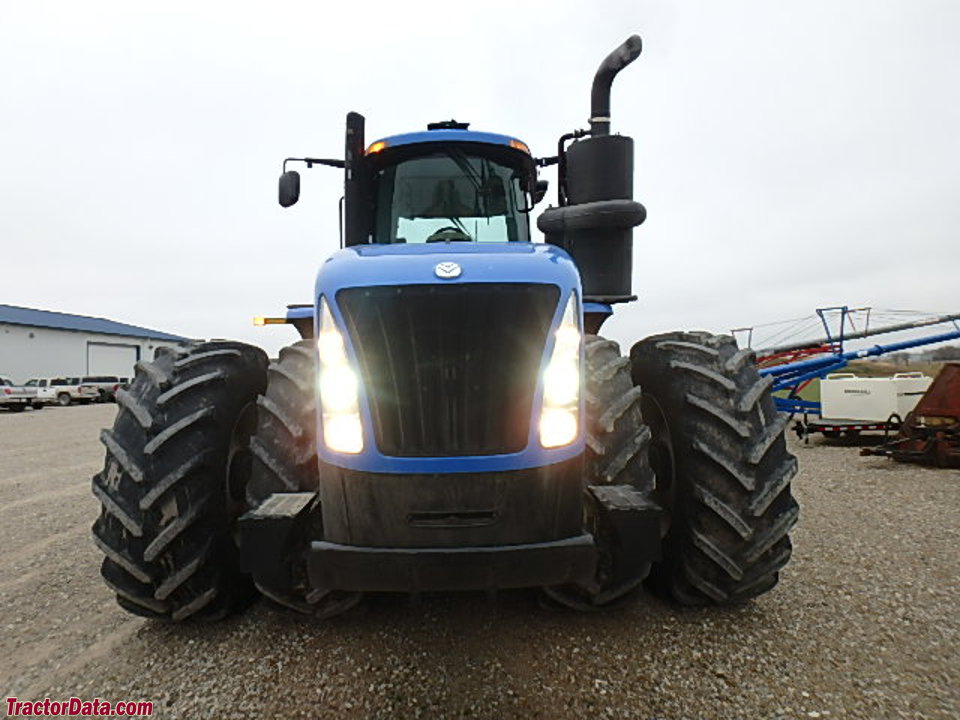

Photos | |
|---|---|
 | |
New Holland T9.565 photos...  |
Hydraulics | |
|---|---|
Type | closed center load sensing (CCLS) |
Valves | 4 to 8 |
Standard Pump flow | 42 gpm
159.0 lpm |
High-Flow Pump flow | 57 gpm
215.7 lpm |
MegaFlow Pump flow | 113 gpm
427.7 lpm |
Tractor hitch | |
|---|---|
Rear Type | IVN OptOptional |
| IIIN OptOptional |
Control | position control |
Rear lift (at 24"/610mm) | 20000 lbs
9072 kg |
Rear Arms | adjustable link ends |
Drawbar | Cat. 4 |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 1000 (1.75) |
Engine RPM | 1000@1998 (early) |
| 1000@1811 (late) |
Dimensions & Tires | |
|---|---|
Wheelbase | 148 inches
375 cm |
Weight | 36048 lbs
16351 kg |
Front tire | 710/70 |
Rear tire | 710/70 |
Full dimensions and tires ...  | |
T9.565 Serial Numbers | |
|---|---|
2014 | ZDFxxxxxx |
2015 | ZEFxxxxxx |
2016 | ZFFxxxxxx |
2017 | ZGFxxxxxx |
2018 | ZHFxxxxxx |
2019 | ZJFxxxxxx |
2020 | ZKFxxxxxx |
2021 | ZLFxxxxxx |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 200 |
Batteries | 2 |
Battery CCA | 1000 |
Battery volts | 12 |
References | |
|---|---|
 | |
T9 Series published in 2018, by New Holland |
