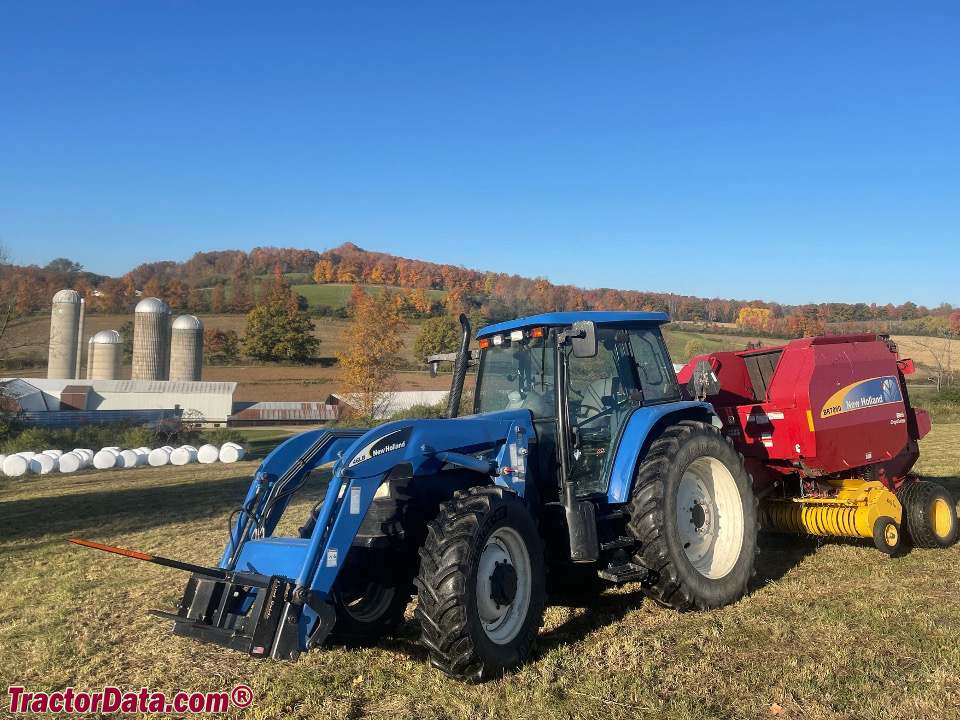

new holland tm140
 | 2002 - 2007
TM Series | 2002 - 2007 | TM Series |
|---|---|---|---|
2002 - 2007 | |||
TM Series | |||
2002 - 2007 | |
|---|---|
TM Series |
Production | |
|---|---|
Manufacturer | New Holland |
Built in Basildon, England | |
New Holland TM140 Engine | |
|---|---|
New Holland 7.5L 6-cyl diesel | |
Engine details ...  |
New Holland TM140 Transmissions | |
|---|---|
17-speed full power shift | |
18-speed full power shift | |
17-speed partial power shift | |
18-speed partial power shift | |
Transmission details ...  |
New Holland TM140 Power | |
|---|---|
Engine | 140 hp
104.4 kW |
PTO (claimed) | 115 hp
85.8 kW |
Drawbar (tested) | 101.2 hp
75.5 kW |
PTO (tested) | 121.1 hp
90.3 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Steering | hydrostatic power |
Differential hydraulic wet disc brakes | |
Cab standard with heat and air-conditioning. Optional heated air-ride seat. | |
Photos | |
|---|---|
 | |
New Holland TM140 photos...  |
Capacity | |
|---|---|
Fuel | 75.3 gal
285.0 L |
Hydraulic system | 5.95 gal
22.5 L |
Hydraulics | |
|---|---|
Type | closed center load sensing (CCLS) |
Capacity | 5.95 gal
22.5 L |
Pressure | 2750 psi
189.6 bar |
Rear valves | 4 |
Mid valves | 2 to 4 |
Pump flow | 28 gpm
106.0 lpm |
Total flow | 44 gpm
166.5 lpm |
Steering flow | 16 gpm
60.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | 2/3N |
Control | electronic lower-link draft control |
Rear lift (at 24"/610mm) | 11,420 lbs
5180 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic wet disc |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 107.2 inches
272 cm |
Weight | 11353 to 12935 pounds |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 120 |
Battery CCA | 1300 |
Battery volts | 12 |
