oliver 1850
 | 1964 - 1969
50 SeriesRow-Crop tractor | 1964 - 1969 | 50 Series | Row-Crop tractor |
|---|---|---|---|---|
1964 - 1969 | ||||
50 Series | ||||
Row-Crop tractor | ||||
1964 - 1969 | |
|---|---|
50 Series | |
Row-Crop tractor |
Production | |
|---|---|
Manufacturer | Oliver |
Row-Crop tractor | |
Original price was $8,500 in 1969 | |
Variants | |
|---|---|
1850 | row-crop |
1850 Wheatland | standard |
Oliver 1850 Engines | |
|---|---|
Waukesha-Oliver 5.1L 6-cyl gasoline | |
Perkins 5.8L 6-cyl diesel | |
Waukesha-Oliver 5.1L 6-cyl LP Gas | |
Engine details ...  |
Oliver 1850 Transmissions | |
|---|---|
6-speed unsynchronized | |
12-speed partial powershift | |
18-speed partial power shift | |
Transmission details ...  |
Oliver 1850 Power | |
|---|---|
Gas PTO (claimed) | 92 hp
68.6 kW |
Diesel PTO (claimed) | 92 hp
68.6 kW |
LP-gas PTO (claimed) | 90 hp
67.1 kW |
Drawbar (tested) | 84.52 hp
63.0 kW |
PTO (tested) | 92.94 hp
69.3 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Steering | power assist |
Differential disc brakes | |
Open operator station. Oliver Continental Cab optional with available air-conditioning. | |
Photos | |
|---|---|
 | |
Oliver 1850 photos...  |
Capacity | |
|---|---|
Gas Fuel | 34.5 gal
130.6 L |
Diesel Fuel | 31.5 gal
119.2 L |
LP-gas Fuel | 42 gal
159.0 L |
| 78 gal*Capacity of optional wheel-guard tanks.
295.2 L |
Hydraulic system | 5 gal
18.9 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 5 gal
18.9 L |
Pressure | 2500 psi
172.4 bar |
Valves | 2 to 4 |
Pump flow | 15.9 gpm
60.2 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
| III OptOptional |
Rear lift (at 24"/610mm) | 6000 lbs
2721 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 |
| 1000 |
| 540/1000 OptOptional |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 103 inches
261 cm |
4WD Wheelbase | 86.25 inches
219 cm |
Weight | 8965 to 10965 pounds |
Front tire | 7.50-15 |
Rear tire | 18.4-34 |
Full dimensions and tires ...  | |
Oliver 1850 attachments | |
|---|---|
front-end loader | |
Attachment details ...  |

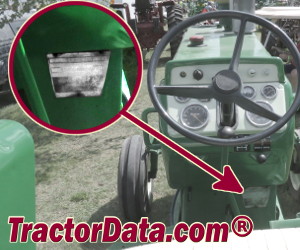

1850 Serial Number Location | |
|---|---|
 | |
Serial number plate below the tractor's instrument panel. |
1850 Serial Numbers | |
|---|---|
1964 | 150421 |
1965 | 153014 |
1966 | 168127 |
1967 | 183382 |
1968 | 200360 |
1969 | 212673 |
FAQ: How to read a serial number table. | |
References | |
|---|---|
 | |
1750/1850 Row Crop, 4-Wheel Drive, Wheatland/Ricefield published in 1969, by Oliver | |
1850 Tractor published by Oliver |
