scotts lawn tractors l17 542
 | 2002
Lawn tractorJohn Deere built | 2002 | Lawn tractor | John Deere built |
|---|---|---|---|---|
2002 | ||||
Lawn tractor | ||||
John Deere built | ||||
2002 | |
|---|---|
Lawn tractor | |
John Deere built |
Production | |
|---|---|
Distributor | Scotts |
Manufacturer | John Deere |
Lawn tractor | |
Built in Greeneville, Tennessee, USA | |
Scotts L17.542 Engine | |
|---|---|
17.5HP Kohler 460cc 1-cyl gasoline | |
Fuel tank | 2.1 gal
7.9 L |
Engine details ...  | |
Scotts L17.542 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |

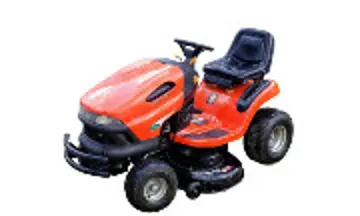

Photos | |
|---|---|
 | |
Scotts L17.542 photos...  |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Weight | 462 lbs
209 kg |
Front tire | 15x6.00-6 |
Rear tire | 20x8.0-8 |
Full dimensions and tires ...  | |
Scotts L17.542 attachments | |
|---|---|
42" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Charging system | Regulated circuit |
Charging amps | 9 |
Battery volts | 12 |
Battery Group | BCI Group U1 |
References | |
|---|---|
 | |
Operator's Manual Scotts Lawn Tractors L1742, L17.542, L2048 and L2548, S1742, and S2046 (OMGX20928) published in 2001 |
