sears lawn tractors hydro trac 14

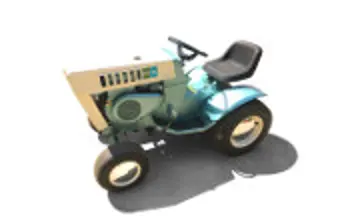

Sears Hydro-Trac 14 917.25600 tractor photo
1971 Garden tractorRoper built
1971
Garden tractor
Roper built
1971
Garden tractor
Roper built
1971
Garden tractor
Roper built
Production
Distributor
Sears
Manufacturer
Roper
Garden tractor
Original price was $1,200 in 1971
Sears Hydro-Trac 14 Engine
14HP Briggs & Stratton 531cc 1-cyl gasoline
Engine details ...
Sears Hydro-Trac 14 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Steering
manual
Open operator station.
Photos
Sears Hydro-Trac 14
Sears Hydro-Trac 14 photos...
Tractor hitch
Type
Sears 3- Point OptOptional
Dimensions & Tires
Weight
725 lbs 328 kg
Front tire
16x6.50-8
Rear tire
23x9.50-12
Full dimensions and tires ...
Sears Hydro-Trac 14 attachments
42" mid-mount mower deck
48" mid-mount mower deck
Attachment details ...
Hydro-Trac 14 Serial Number Location
Sears Hydro-Trac 14 serial number location
Serial number plate on the rear of the HT14, below the seat.
Electrical
Ground
negative
Battery volts
12
References
Hydro-Trac 14 917.25600 references literature
Spring through Summer Catalog published in 1971, by Sears
Suburban and Farm Living published in 1971, by Sears
