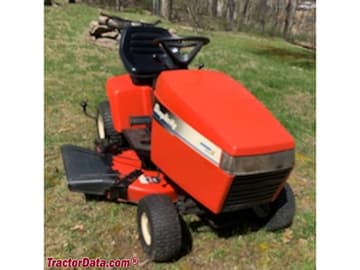

simplicity lawn tractors broadmoor 14h
 | 1994 - 1999
Model year 1994-19971997-1999
Broadmoor SeriesLawn tractor | 1994 - 1999 | Model year 1994-19971997-1999 | Broadmoor Series | Lawn tractor |
|---|---|---|---|---|---|
1994 - 1999 | |||||
Model year 1994-19971997-1999 | |||||
Broadmoor Series | |||||
Lawn tractor | |||||
1994 - 1999 | |
|---|---|
Model year 1994-19971997-1999 | |
Broadmoor Series | |
Lawn tractor |
Production | |
|---|---|
Manufacturer | Simplicity |
Lawn tractor | |
Built in Port Washington, Wisconsin, USA | |
Original price was $3,150 in 1994 | |
Variants | |
|---|---|
2614H | similar Massey Ferguson model |
1614H | similar AGCO model |
Simplicity Broadmoor 14H Engine | |
|---|---|
14HP Kohler 398cc 1-cyl gasoline | |
Fuel tank | 4 gal
15.1 L |
Engine details ...  | |
Simplicity Broadmoor 14H Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Photos | |
|---|---|
 | |
Simplicity Broadmoor 14H photos...  |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Mid PTO Type | pulley |
Dimensions & Tires | |
|---|---|
Wheelbase | 48 inches
121 cm |
Weight | 540 lbs
244 kg |
Front tire | 15x6.00-6 |
Rear tire | 20x8.00-8 |
Full dimensions and tires ...  | |
Simplicity Broadmoor 14H attachments | |
|---|---|
38" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Operator's Manual Broadmoor Series (1709979) published in 1994 | |
Tractors & Riding Mowers published in 1994, by Simplicity | |
Tractors & Riding Mowers published in 1995, by Simplicity | |
Tractors & Riding Mowers published in 1996, by Simplicity | |
1994 Price List published in 1993, by Simplicity | |
1996 Dealer Prduct Guide published by Simplicity |
