steiger 9180
 | 1986 - 1990
9100 SeriesFour-wheel Drive (4WD) tractor | 1986 - 1990 | 9100 Series | Four-wheel Drive (4WD) tractor |
|---|---|---|---|---|
1986 - 1990 | ||||
9100 Series | ||||
Four-wheel Drive (4WD) tractor | ||||
1986 - 1990 | |
|---|---|
9100 Series | |
Four-wheel Drive (4WD) tractor |
Series map: 917091809190335.0hp375.0hp525.0hp
Note: the Steiger model 9180 is the same as the CaseIH 9180. The following data is from the 9180 listing. |
|---|
Production | |
|---|---|
Manufacturer | Steiger |
Four-wheel Drive (4WD) tractor | |
Built in Fargo, North Dakota, USA | |
Original price was $128,000 in 1990 | |
Steiger 9180 Engine | |
|---|---|
Cummins 14.0L 6-cyl diesel | |
Engine details ...  |
Steiger 9180 Transmission | |
|---|---|

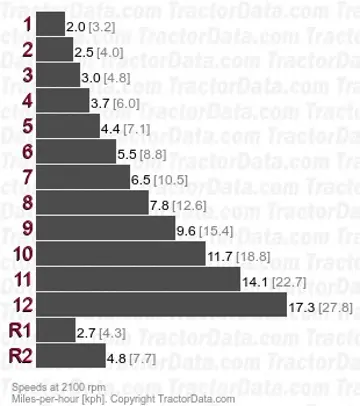

12-speed full power shift | |
Transmission details ...  |
Steiger 9180 Power | |
|---|---|
Engine | 375 hp
279.6 kW |
PTO (claimed) | 344 hp
256.5 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Final drives | outboard planetary |
Steering | hydrostatic power |
Cab standard with air-conditioning. | |
Capacity | |
|---|---|
Fuel | 250 gal
946.2 L |
Hydraulic system | 26 gal
98.4 L |
Hydraulics | |
|---|---|
Type | closed center |
Capacity | 26 gal
98.4 L |
Pressure | 2500 psi
172.4 bar |
Valves | 3 to 4 |
SCV flow | 27 gpm
102.2 lpm |
Total flow | 40 gpm
151.4 lpm |
Tractor hitch | |
|---|---|
Rear Type | IV OptOptional |
Rear lift | 14000 lbs
6350 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent OptOptional |
Rear PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 141.5 inches
359 cm |
Weight | 28000 lbs
12700 kg |
Front tire | 24.5-32 |
Rear tire | 24.5-32 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
