steiger panther iii st 325
 | 1976 - 1983
III SeriesFour-wheel Drive (4WD) tractor | 1976 - 1983 | III Series | Four-wheel Drive (4WD) tractor |
|---|---|---|---|---|
1976 - 1983 | ||||
III Series | ||||
Four-wheel Drive (4WD) tractor | ||||
1976 - 1983 | |
|---|---|
III Series | |
Four-wheel Drive (4WD) tractor |
Production | |
|---|---|
Manufacturer | Steiger |
Four-wheel Drive (4WD) tractor | |
Built in Fargo, North Dakota, USA | |
Original price was $103,000 in 1983 | |
Steiger Panther III ST-325 Engine | |
|---|---|
Caterpillar 14.6L 6-cyl diesel | |
Fuel tank | 267 gal
1010.6 L |
Engine details ...  | |

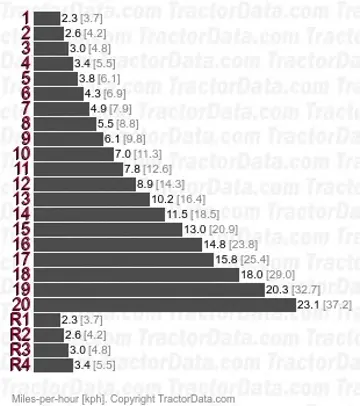

Steiger Panther III ST-325 Transmissions | |
|---|---|
10-speed | |
20-speed | |
Transmission details ...  |
Steiger Panther III ST-325 Power | |
|---|---|
Engine | 325 hp
242.4 kW |
Drawbar (tested) | 269.86 hp
201.2 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Four-wheel drive | |
Final drives | outboard planetary |
Articulated power steering | |
Hydraulic disc brakes | |
Safari Cab standard with heat and air-conditioning. | |
Photos | |
|---|---|
 | |
Steiger Panther III ST-325 photos...  |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2250 psi
155.1 bar |
Valves | 3 to 5 |
Pump flow | 31.9 gpm
120.7 lpm |
Tractor hitch | |
|---|---|
Rear Type | III OptOptional |
Dimensions & Tires | |
|---|---|
Wheelbase | 128 inches
325 cm |
Weight | 26900 lbs
12201 kg |
Front tire | 24.5-32 |
Rear tire | 24.5-32 |
Full dimensions and tires ...  | |
Panther III ST-325 Serial Numbers | |
|---|---|
1976 | 123-00001 |
1977 | 123-00123 |
1978 | 123-00370 |
1979 | 123-00627 |
1980 | 123-00887 |
1981 | 123-01124 |
1982 | 123-01501 |
1983 | 123-02501 |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 90 |
Batteries | 2 |
Battery volts | 12 |
Battery AH | 208 |
Battery Group | 8D |
References | |
|---|---|
 | |
ST Tractors published in 1981, by Steiger | |
ST Tractors published in 1982, by Steiger | |
ST Tractors - Caterpillar Powered Series III Cougar ST 270 and Panther ST 325 published in 1979, by Steiger | |
Series III published in 1976, by Steiger |
