utb universal 530
 | 1982 - 1985 | 1982 - 1985 |
|---|---|---|
1982 - 1985 | ||
1982 - 1985 |
|---|
Transmission options | |
|---|---|
12-speed constant mesh | |
8-speed shuttle |
Transmission | |
|---|---|
Type | constant mesh |
Gears | 12 forward and 3 reverse |
Clutch | 279.4mm dry disc |
Four gears (1-4) plus reverse (R) in three ranges (creeper, low, and high). Gears 3 and 4 are synchronized. | |

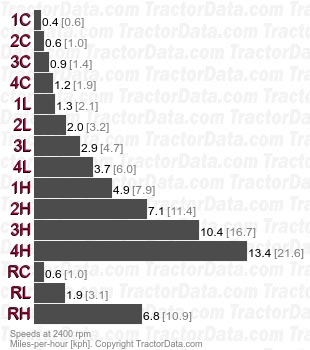

Speeds | |
|---|---|
With 14.9x28 rear tires. | |
 |
Transmission | |
|---|---|
Type | shuttle |
Gears | 8 forward and reverse |
Clutch | 279.4mm dry disc |
Speeds | |
|---|---|
With 14.9x28 rear tires. Reverse speeds are 15% faster than forward. | |
 |
