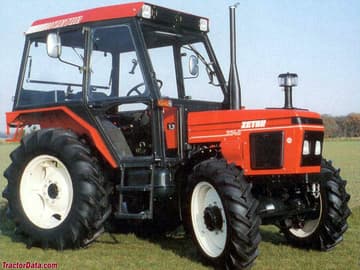

zetor 3340
 | 1993 - 1997
Range 1 SeriesUtility tractor | 1993 - 1997 | Range 1 Series | Utility tractor |
|---|---|---|---|---|
1993 - 1997 | ||||
Range 1 Series | ||||
Utility tractor | ||||
1993 - 1997 | |
|---|---|
Range 1 Series | |
Utility tractor |
Production | |
|---|---|
Manufacturer | Zetor |
Utility tractor | |
Built in Brno, Czech Republic | |
Original price was $19,000 in 1999 | |
Variants | |
|---|---|
3320 | 2WD |
3340 | 4WD |
Zetor 3340 Engine | |
|---|---|
Zetor 2.7L 3-cyl diesel | |
Fuel tank | 12 gal
45.4 L |
Engine details ...  | |
Zetor 3340 Transmissions | |
|---|---|
10-speed synchromesh | |
10-speed | |
Transmission details ...  |
Zetor 3340 Power | |
|---|---|
Engine | 46 hp
34.3 kW |
PTO (claimed) | 43 hp
32.1 kW |
Drawbar (tested) | 37.96 hp
28.3 kW |
PTO (tested) | 42.51 hp
31.7 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Hydraulic dry disc brakes | |
Trailer brakes | pneumatic OptOptional |
| hydraulic OptOptional |
Cab standard, radio optional. | |
Photos | |
|---|---|
 | |
Zetor 3340 photos...  |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2,611 psi
180.0 bar |
Valves | 1 |
Total flow | 8.5 gpm
32.2 lpm |
Steering flow | 4 gpm
15.1 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 3850 lbs
1746 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 84.3 inches
214 cm |
Weight | 7,077 lbs
3210 kg |
Front tire | 9.5x24 |
Rear tire | 14.9x28 |
Full dimensions and tires ...  | |
Zetor 3340 attachments | |
|---|---|
front-end loader | |
Attachment details ...  |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 55 |
Battery CCA | 950 |
Battery volts | 12 |
References | |
|---|---|
 | |
3320 - 3340 published by Zetor | |
Range 1 Tractors published by Zetor |
