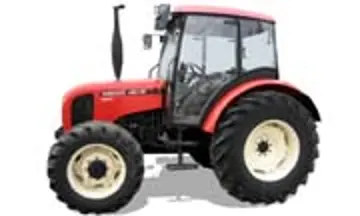

zetor 4341
 | 1997 - 2004
Range 1 Super SeriesUtility tractor | 1997 - 2004 | Range 1 Super Series | Utility tractor |
|---|---|---|---|---|
1997 - 2004 | ||||
Range 1 Super Series | ||||
Utility tractor | ||||
1997 - 2004 | |
|---|---|
Range 1 Super Series | |
Utility tractor |
Production | |
|---|---|
Manufacturer | Zetor |
Utility tractor | |
Built in Brno, Czech Republic | |
Original price | $27,000 |
Variants | |
|---|---|
4321 | 2WD |
4341 | 4WD |
Zetor 4341 Engine | |
|---|---|
Zetor 3.9L 4-cyl diesel | |
Fuel tank | 32 gal
121.1 L |
Engine details ...  | |
Zetor 4341 Transmission | |
|---|---|
10-speed | |
Transmission details ...  |
Zetor 4341 Power | |
|---|---|
Engine | 59 hp
44.0 kW |
PTO (claimed) | 56 hp
41.8 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Hydraulic wet disc brakes | |
Two-post folding ROPS. Cab optional with air-conditioning. |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2600 psi
179.3 bar |
Valves | 1 to 3 |
Pump flow | 14 gpm
53.0 lpm |
Steering flow | 4 gpm
15.1 lpm |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Control | position and draft control |
Rear lift | 6830 lbs
3098 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Wheelbase | 73 inches
185 cm |
Weight | 7570 lbs
3433 kg |
Front tire | 11.2-24 |
Rear tire | 16.9-28 |
Full dimensions and tires ...  | |
Zetor 4341 attachments | |
|---|---|
front-end loader | |
Attachment details ...  |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 75 |
Battery volts | 12 |
References | |
|---|---|
 | |
Super Series Tractors published by Zetor |
