zetor 5745
 | 1972 - 1978
UR1 7 Series | 1972 - 1978 | UR1 7 Series |
|---|---|---|---|
1972 - 1978 | |||
UR1 7 Series | |||
1972 - 1978 | |
|---|---|
UR1 7 Series |
Production | |
|---|---|
Manufacturer | Zetor |
Built in Brno, Czechoslovakia | |
Variants | |
|---|---|
5711 | 2WD |
5718 | 2WD cab |
5745 | 4WD |
5748 | 4WD cab |
Zetor 5745 Engine | |
|---|---|
Zetor 3.1L 4-cyl diesel | |
Fuel tank | 18.5 gal
70.0 L |
Engine details ...  | |
Zetor 5745 Transmissions | |
|---|---|
10-speed | |
20-speed partial power shift | |
Transmission details ...  |
Zetor 5745 Power | |
|---|---|
Engine | 58 hp
43.3 kW |
PTO (claimed) | 54 hp
40.3 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential hydraulic drum brakes | |
Trailer brakes | pneumatic optional |
Open operator station. | |

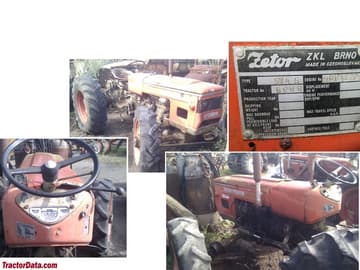

Photos | |
|---|---|
 | |
Zetor 5745 photos...  |
Hydraulics | |
|---|---|
Type | Zetormatic |
Pressure | 2321 psi
160.0 bar |
Valves | 1 |
Pump flow | 5.3 gpm
20.1 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift (at ends) | 3850 lbs
1746 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Engine RPM | 540@2000 |
| 1000@2050 |
Dimensions & Tires | |
|---|---|
Wheelbase | 88 inches
223 cm |
Weight | 5780 lbs
2621 kg |
Front tire | 9.5-24 |
Rear tire | 12.4-36 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
5711 - 5745 published in 1972, by Zetor |
