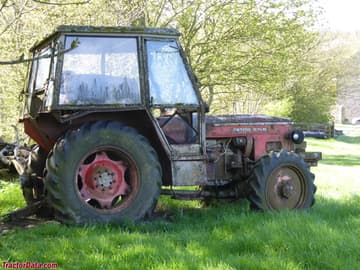

zetor 5748
 | 1972 - 1978
UR1 7 Series | 1972 - 1978 | UR1 7 Series |
|---|---|---|---|
1972 - 1978 | |||
UR1 7 Series | |||
1972 - 1978 | |
|---|---|
UR1 7 Series |
Production | |
|---|---|
Manufacturer | Zetor |
Built in Brno, Czechoslovakia | |
Variants | |
|---|---|
5711 | 2WD |
5718 | 2WD cab |
5745 | 4WD |
5748 | 4WD cab |
Zetor 5748 Engine | |
|---|---|
Zetor 3.1L 4-cyl diesel | |
Fuel tank | 18.5 gal
70.0 L |
Engine details ...  | |
Zetor 5748 Transmissions | |
|---|---|
10-speed | |
20-speed partial power shift | |
Transmission details ...  |
Zetor 5748 Power | |
|---|---|
Engine | 58 hp
43.3 kW |
PTO (claimed) | 54 hp
40.3 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential hydraulic drum brakes | |
Trailer brakes | air optional |
Cab standard. | |
Photos | |
|---|---|
 | |
Zetor 5748 photos...  |
Hydraulics | |
|---|---|
Type | Zetormatic |
Pressure | 2321 psi
160.0 bar |
Valves | 1 |
Pump flow | 5.3 gpm
20.1 lpm |
Tractor hitch | |
|---|---|
Rear lift | 3748 lbs
1700 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/ground |
| 1000 OptOptional |
Dimensions & Tires | |
|---|---|
Wheelbase | 88.46 inches
224 cm |
Weight | 6,993 lbs
3172 kg |
Front tire | 9.5-24 |
Rear tire | 12.4-36 |
Full dimensions and tires ...  | |
