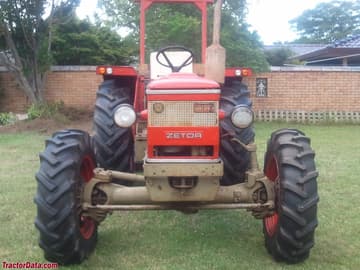

zetor 6745
 | 1972 - 1978
UR1 Série 7 | 1972 - 1978 | UR1 Série 7 |
|---|---|---|---|
1972 - 1978 | |||
UR1 Série 7 | |||
1972 - 1978 | |
|---|---|
UR1 Série 7 |
Production | |
|---|---|
Fabricant | Zetor |
Construit à Brno, Tchécoslovaquie | |
Variantes | |
|---|---|
6711 | 2WD |
6718 | 2WD cabine |
6745 | 4x4 |
6748 | 4WD cabine |
Moteur Zetor 6745 | |
|---|---|
Zetor 3.5L 4-cyl diesel | |
Réservoir de carburant | 18,5 gal
70,0 L |
Détails du moteur ...  | |
Zetor 6745 Transmissions | |
|---|---|
10 vitesses | |
20 vitesses power shift partiel | |
Détails de la transmission...  |
Zetor 6745 Power | |
|---|---|
Moteur | 65 ch
48,5 kW |
PTO (déclaré) | 60 ch
44,7 kW |
Mécanique | |
|---|---|
Transmission intégrale | |
Freins hydrauliques à tambour différentiel | |
Freins de remorque | air optionnel |
Poste opérateur ouvert. | |
Photos | |
|---|---|
 | |
Photos Zetor 6745...  |
Hydraulique | |
|---|---|
Type | Zetormatic |
Pression | 2321 psi
160,0 bar |
Vannes | 1 |
Débit de la pompe | 5,3 gpm
20,1 lpm |
Attelage de tracteur | |
|---|---|
Levage arrière | 3 858 lbs
1749 kg |
Prise de Puissance (PTO) | |
|---|---|
Prise de puissance arrière | indépendant |
Type de prise de force arrière | 540/sol |
| 1000 OptOptionnel |
Dimensions et Pneumatiques | |
|---|---|
Empattement | 88,46 pouces
224 cm |
Poids | 6,695 lbs
3036 kg |
Pneus avant | 11.2-24 |
Pneus arrière | 12.4-36 |
Dimensions complètes et pneus ...  | |

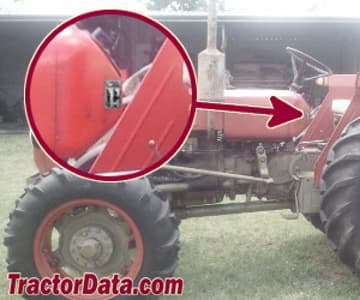

Emplacement du numéro de série 6745 | |
|---|---|
 | |
Plaque signalétique du numéro de série sur le côté gauche du tableau de bord du Zetor 6745, sous le volant. |
