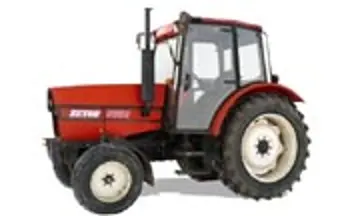

zetor 7520
 | 1995 - 1999
Range 3 Series | 1995 - 1999 | Range 3 Series |
|---|---|---|---|
1995 - 1999 | |||
Range 3 Series | |||
1995 - 1999 | |
|---|---|
Range 3 Series |
Production | |
|---|---|
Manufacturer | Zetor |
Built in Brno, Czech Republic | |
Original price was $34,000 in 1995 | |
Variants | |
|---|---|
7520 | 2WD |
7540 | 4WD |
Zetor 7520 Engine | |
|---|---|
Zetor 4.2L 4-cyl diesel | |
Engine details ...  |

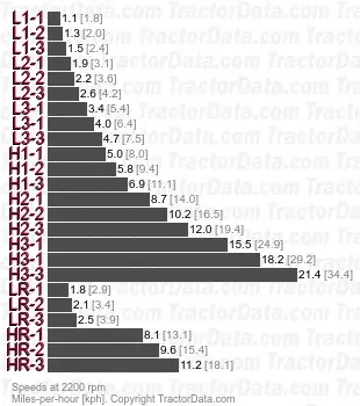

Zetor 7520 Transmissions | |
|---|---|
16-speed | |
18-speed synchromesh | |
Transmission details ...  |
Zetor 7520 Power | |
|---|---|
Engine | 71 hp
52.9 kW |
PTO (claimed) | 63 hp
47.0 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | hydrostatic power |
Hydraulic wet disc brakes | |
Cab standard with heater. | |
Hydraulics | |
|---|---|
Type | open |
Pressure | 2682 psi
184.9 bar |
Valves | 3 |
Total flow | 15.85 gpm
60.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 7,165 lbs
3250 kg |
Front Hitch | optional |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 93.5 inches
237 cm |
Weight | 7341 lbs
3329 kg |
Front tire | 7.50-20 |
Rear tire | 16.9-34 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 55 |
Charging volts | 12 |
Battery volts | 12 |
References | |
|---|---|
 | |
Unified Range 3 published by Zetor |
