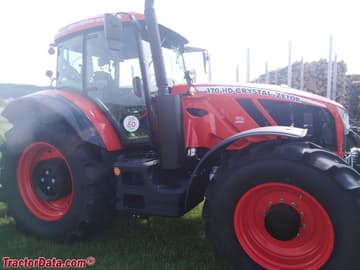

zetor crystal 170 hd
 | 2018 -
Crystal SeriesRow-Crop tractor | 2018 - | Crystal Series | Row-Crop tractor |
|---|---|---|---|---|
2018 - | ||||
Crystal Series | ||||
Row-Crop tractor | ||||
2018 - | |
|---|---|
Crystal Series | |
Row-Crop tractor |
Production | |
|---|---|
Manufacturer | Zetor |
Row-Crop tractor | |
Built in Brno, Czech Republic | |
Zetor Crystal 170 HD Engine | |
|---|---|
Deutz 6.1L 6-cyl diesel | |
Fuel tank | 79.3 gal
300.2 L |
Exhaust fluid (DEF) | 8.5 gal
32.2 L |
Engine details ...  | |
Zetor Crystal 170 HD Transmission | |
|---|---|
30-speed three-speed power shift | |
Transmission details ...  |
Zetor Crystal 170 HD Power | |
|---|---|
Engine (gross) | 163.6 hp
122.0 kW |
Engine (max) | 171 hp
127.5 kW |
PTO (claimed) | 139 hp
103.7 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | electro-hydraulic front and rear |
Power steering | |
Wet disc brakes | |
Trailer brakes | pneumatic OptOptional |
| hydraulic OptOptional |
Cab standard with air-conditioning. | |

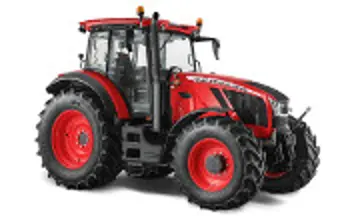

Photos | |
|---|---|
 | |
Zetor Crystal 170 HD photos...  |
Hydraulics | |
|---|---|
Type | open center |
Pump flow | 22.5 gpm
85.2 lpm |
Tractor hitch | |
|---|---|
Rear Type | III |
Rear lift | 17534 lbs
7953 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/540E/1000/1000E |
Mid PTO | independent OptOptional |
Mid PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 112.2 inches
284 cm |
Weight | 12699 lbs
5760 kg |
Front tire | 480/65R28 |
Rear tire | 600/65R38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
