bolens lawn tractors 750
 | 1967
Tube Frame SeriesGarden tractor | 1967 | Tube Frame Series | Garden tractor |
|---|---|---|---|---|
1967 | ||||
Tube Frame Series | ||||
Garden tractor | ||||
1967 | |
|---|---|
Tube Frame Series | |
Garden tractor |
Production | |
|---|---|
Manufacturer | Bolens |
Garden tractor | |
Bolens 750 Engine | |
|---|---|
7HP Briggs & Stratton 275cc 1-cyl gasoline | |
Fuel tank | 1 gal
3.8 L |
Engine details ...  | |
Bolens 750 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station |

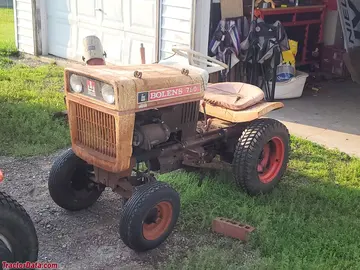

Photos | |
|---|---|
 | |
Bolens 750 photos...  |
Dimensions & Tires | |
|---|---|
Wheelbase | 42.5 inches
107 cm |
Weight | 585 lbs
265 kg |
Front tire | 4.00-8 |
Rear tire | 6.00-12 |
Full dimensions and tires ...  | |
Bolens 750 attachments | |
|---|---|
32" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |

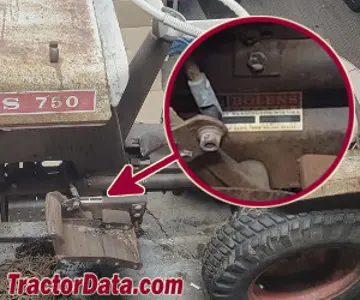

750 Serial Number Location | |
|---|---|
 | |
Serial number decal on the left side of the tractor frame, near the foot rest. |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Husky Tractors published in 1967, by Bolens | |
Outdoor Power Equipment published in 1967, by Bolens |
