cub cadet lawn tractors 805
 | 1985 - 1986
Lawn tractor | 1985 - 1986 | Lawn tractor |
|---|---|---|---|
1985 - 1986 | |||
Lawn tractor | |||
1985 - 1986 | |
|---|---|
Lawn tractor |
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Lawn tractor | |
Original price | $2,179 (1985 ) |
$2,249 (1986 ) | |
Cub Cadet 805 Engine | |
|---|---|
8HP Briggs & Stratton 318cc 1-cyl gasoline | |
Fuel tank | 3 gal
11.4 L |
Engine details ...  | |
Cub Cadet 805 Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |

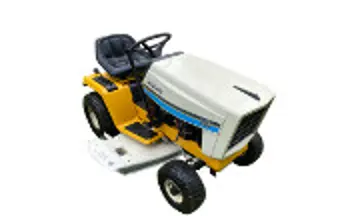

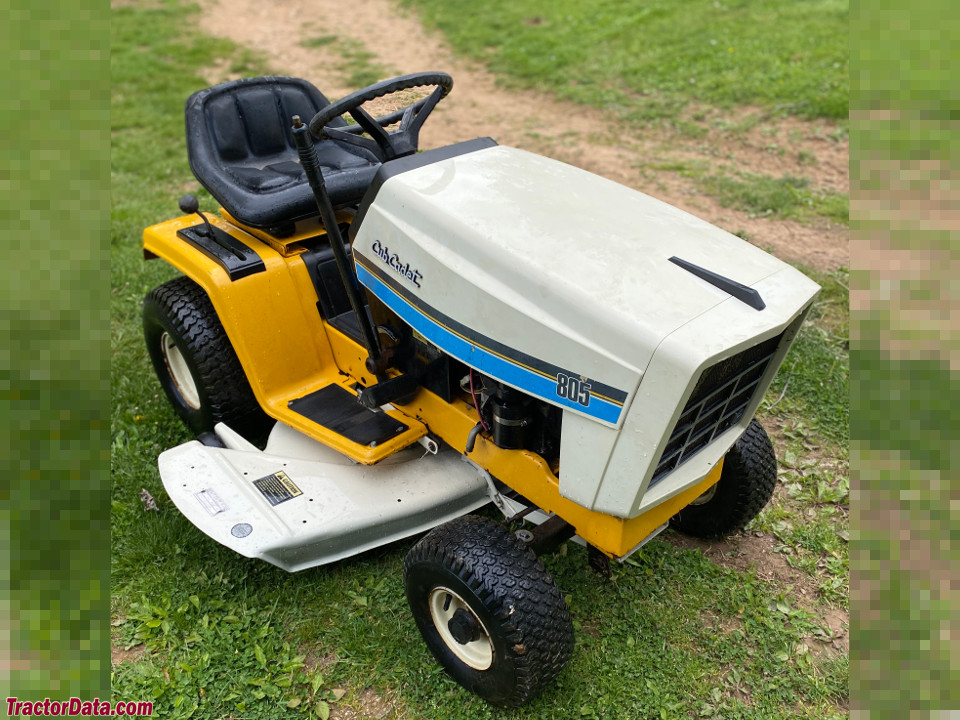

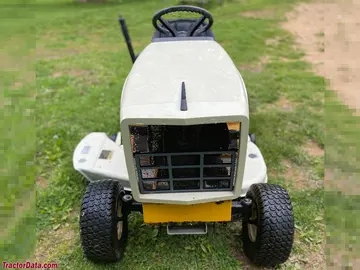

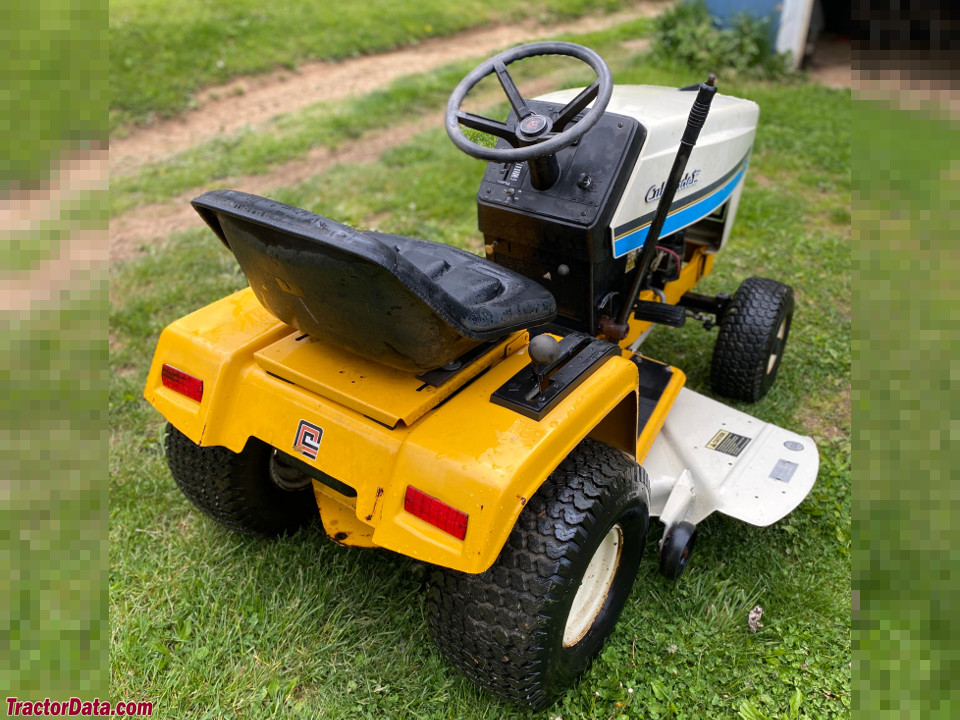

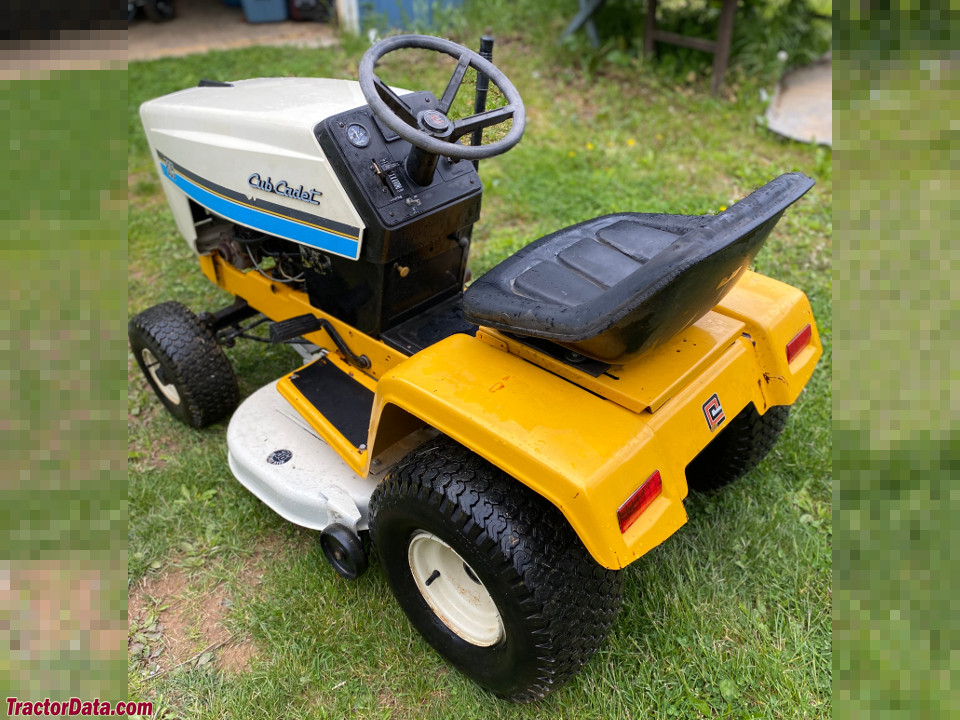

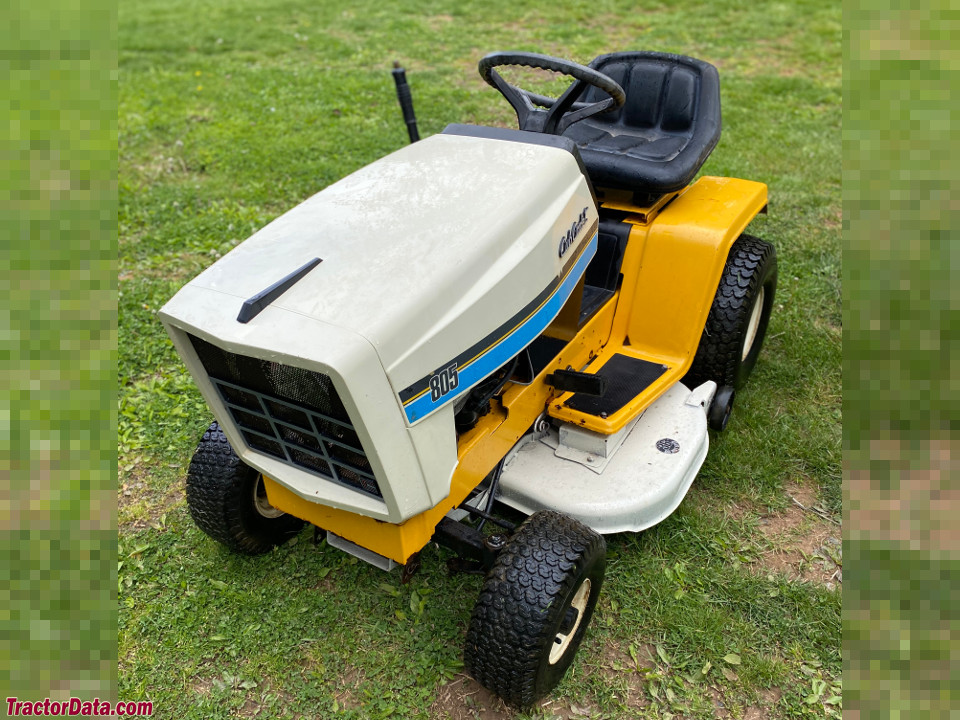

Photos | |
|---|---|
 | |
Cub Cadet 805 photos...  |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 45 inches
114 cm |
Weight | 473 lbs
214 kg |
Front tire | 15x6-6 |
Rear tire | 20x10-8 |
Full dimensions and tires ...  | |
Cub Cadet 805 attachments | |
|---|---|
36" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |
805 Serial Numbers | |
|---|---|
Location: | Left side of tractor frame. |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Home Tractors published in 1985, by Cub Cadet | |
Cub Cadet Lawn Tractors published in 1986 | |
Service Manual Lawn Tractors (772-3870) published in 1990 |
