AGCO AGCOSTAR 8360

The AGCO AGCOSTAR 8360 is a tractor produced by Agco. It is equipped with a 855 ci 14.0 L engine. The listed engine power is Diesel (listed): 360 hp / 268.5 kW. Transmission: Eaton Fuller. Operating weight: 28300 lbs 12836 kg.

Engine Power

Diesel (listed): 360 hp / 268.5 kW

Fuel & Capacities

230 gal 870.6 L

Transmission

Eaton Fuller

Operating Weight

28300 lbs 12836 kg

Overview

	1995 - 2001 Four-wheel Drive (4WD) tractor

Production
Manufacturer	AGCO
Four-wheel Drive (4WD) tractor
Built in Coldwater, Ohio, USA
After purchasing McConnell in 1994, AGCO turned the McConnell 900 into the AGCOSTAR 8360. Three paint options were available depending on whether the customer wanted Massey red, Allis orange, or White silver.

AGCO 8360 Engine
Cummins 14.0L 6-cyl diesel
Fuel tank	230 gal 870.6 L
Engine details ...

AGCO 8360 Transmission
18-speed partially synchronized
Transmission details ...

AGCO 8360 Power
Engine	360 hp 268.5 kW
Drawbar (tested)	290.56 hp 216.7 kW
Performance test details ...

Mechanical
Four-wheel drive
Final drives	outboard planetary
Articulated power steering
Hydraulic dry disc brakes
Cab standard with air conditioning.

Hydraulics
Type	closed center
Pressure	2500 psi 172.4 bar
Valves	4 or 5
Pump flow	35 gpm 132.5 lpm
SCV flow	27 gpm 102.2 lpm

Dimensions & Tires
Wheelbase	137.1 inches 348 cm
Weight	28300 lbs 12836 kg
Front tire	20.8R42
Rear tire	20.8R42
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	130
Batteries	3
Battery CCA	700
Battery volts	12

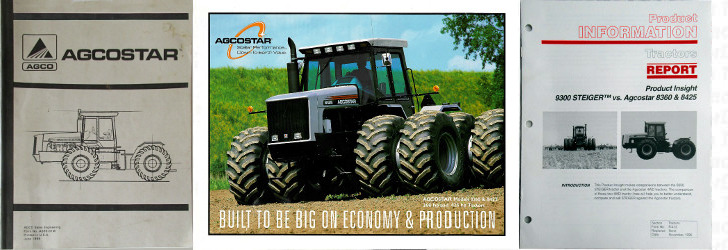

References

AGCOSTAR Sales Training Manual published in 1995
AgcoStar: Built To be Big On Economy & Production. published in 1997, by AGCO
Product Insight: 9300 STEIGER vs. Agcostar 8360 & 8425 published in 1996

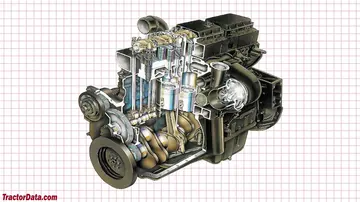

Engine

Engine Detail — 855 ci / 14.0 L Diesel

Manufacturer	Cummins N14
Configuration	turbocharged aftercooled diesel, 6-cylinder 24-valve, liquid-cooled inline
Displacement	855 ci 14.0 L
Bore/Stroke	5.50x6.00 inches 140 x 152 mm
Power	360 hp 268.5 kW
Fuel system	direct injection
Air cleaner	dual paper elements with aspirator
Pre-heating	coolant heater
Compression	16.5:1
Rated RPM	2100
Idle RPM	825-2400
Torque	1215 lb-ft 1647.5 Nm
Torque RPM	1400
Starter volts	12

AGCO 8360 Engine

Transmission

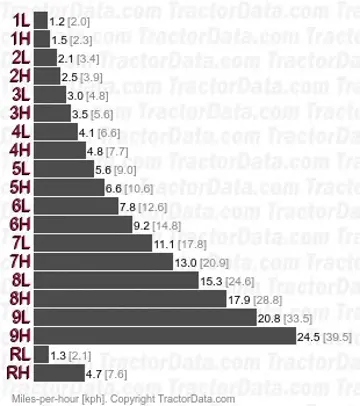

Transmission — Eaton Fuller

Transmission	Eaton Fuller
Type	partially synchronized
Gears	18 forward and 2 reverse
Clutch	393.7mm cerametallic disc

Dimensions

AGCO 8360 Tires
Ag front	20.8R42
Ag rear	20.8R42
Ag front	24.5-32
	30.5L-32
	20.8R38
Ag rear	24.5-32
	30.5L-32
	20.8R38

Dimensions
Wheelbase	137.1 inches 348 cm
Length	272.4 inches 691 cm
Width	152.9 inches*Width over duals. 388 cm
Ground clearance	20.5 inches 52 cm
Clearance (drawbar)	23 inches 58 cm

AGCO 8360 Weight
Shipping	28300 lbs 12836 kg
Ballasted	34200 lbs 15513 kg
Max capacity	37500 lbs 17010 kg

AGCO 8360 Height
Hood	94.6 inches 240 cm
Cab	133.2 inches 338 cm
Exhaust	138.9 inches 352 cm

Tests

OCED Tractor Test 1720
Diesel 18-speed 4WD October 7 - 17, 1996 Link: OCED Tractor Test 1720 file
Drawbar performance
Max power	290.56 hp 216.7 kW
Fuel use	18.9 gal/hour 71.5 l/hour
Gear 5L used for power test.
Max pull	32,477 lbs 14731 kg
Gear 2L used for pull test.

Photos

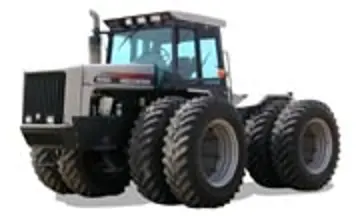

AGCO AGCOSTAR 8360 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Agco AGCOSTAR 8360 based on its 360 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁	Commercial / Field Scale	High horsepower articulated/4WD field plowing.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙	Commercial / Field Scale	Broad-acre grain tillage for high-drawbar tractors.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Agco AGCOSTAR 8360.

Estimated Continuous Field Runtime: 12.3 hrs

Approximately 12.3 hours of continuous field operation at ~75% rated power on a full tank (230 gal / 870.6 L).

Estimated 75% Load Fuel Burn~18.7 gal/hr (70.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
