AGCO DT200A
The AGCO DT200A is a tractor produced by Agco. It is equipped with a 449 ci 7.4 L engine. The listed engine power is Diesel (listed): 235 hp / 175.2 kW. Transmission: PowerMaxx CVT. Operating weight: 19,136 lbs 8680 kg.
Engine Power
Diesel (listed): 235 hp / 175.2 kW
Fuel & Capacities
158.5 gal
599.9 L
Transmission
PowerMaxx CVT
Operating Weight
19,136 lbs
8680 kg
Overview
 | 2005 - 2008
DT-A SeriesRow-Crop tractor
DT-A Series
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | AGCO |
Row-Crop tractor | |
Built in Beauvais, France | |
Variants | |
|---|---|
8460 | similar Massey Ferguson model |
AGCO DT200A Engine | |
|---|---|
Sisu Diesel 7.4L 6-cyl diesel | |
Fuel tank | 158.5 gal
599.9 L |
Engine details ...  | |
AGCO DT200A Transmission | |
|---|---|
continuously variable transmission | |
Transmission details ...  |
AGCO DT200A Power | |
|---|---|
Engine | 235 hp
175.2 kW |
PTO (claimed) | 200 hp
149.1 kW |
Drawbar (tested) | 175.3 hp
130.7 kW |
PTO (tested) | 233.5 hp
174.1 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Hydraulic wet disc brakes | |
Cab standard with optional pneumatic suspension. Datatronics 3, Fieldstar, and Auto-Guide compatible. | |
Hydraulics | |
|---|---|
Type | closed center pressure flow compensated (PFC) |
Pressure | 2900 psi
200.0 bar |
Valves | 4 or 5 |
Total flow | 39 gpm
147.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | 3 |
Rear lift (at 24"/610mm) | 14,400 lbs
6531 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 121 inches
307 cm |
Weight | 19,136 lbs
8680 kg |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Battery volts | 12 |
Engine
Engine Detail — 449 ci / 7.4 L Diesel
Manufacturer | Sisu Diesel |
Configuration | turbocharged intercooled diesel, 6-cylinder, liquid-cooled |
Displacement | 449 ci
7.4 L |
Bore/Stroke | 4.252x5.276 inches
108 x 134 mm |
Emissions | Tier II |
Power | 235 hp
175.2 kW |
Air cleaner | two paper elements |
Pre-heating | thermostart |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — PowerMaxx CVT
Transmission | PowerMaxx CVT |
Type | continuously variable transmission |
Gears | infinite forward and reverse (two-range) |
 | |
Dimensions
AGCO DT200A Tires |
|---|
Dimensions | |
|---|---|
Wheelbase | 121 inches
307 cm |
Length | 206 inches
523 cm |
Height (cab) | 122 inches
309 cm |
Shipping weight | 19,136 lbs
8680 kg |
Front axle | HydraMaxx optional |
Tests
OCED Tractor Test 2322 | |
|---|---|
Diesel CVT 4WD
March 2005 - May 2005,
Link: OCED Tractor Test 2322 file | |
PTO performance | |
Max power | 233.5 hp
174.1 kW |
Fuel use | 12.6 gal/hour
47.7 l/hour |
Power at rated engine speed | 205.7 hp
153.4 kW |
Fuel use | 12.2 gal/hour
46.2 l/hour |
Power at rated PTO speed | 231.1 hp
172.3 kW |
Fuel use | 12.7 gal/hour
48.1 l/hour |
Drawbar performance | |
Max power | 175.3 hp
130.7 kW |
Fuel use | 12.1 gal/hour
45.8 l/hour |
Pull at 7.8 KPH | |
Max pull | 26,400 lbs
11975 kg |
Pull at 3.5 KPH | |
Photos

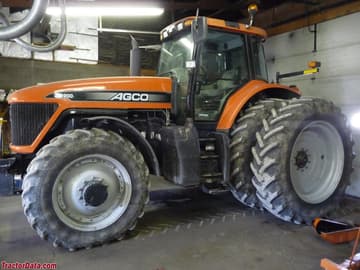

AGCO DT200A
Recommended Implements & Sizing Guide
Engineering recommendations for Agco DT200A based on its 235 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁 | Commercial / Field Scale | High horsepower articulated/4WD field plowing. |
Rotary Cutter / MowerMowing & Clearing | 15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼 | Commercial / Field Scale | Large commercial field and roadside mowing operations. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙 | Commercial / Field Scale | Broad-acre grain tillage for high-drawbar tractors. |
Hay BalerHay & Forage | Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m) | Commercial / Field Scale | High-capacity commercial forage harvesting (1000 RPM PTO). |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Agco DT200A.
Estimated Continuous Field Runtime: 13 hrs
Approximately 13 hours of continuous field operation at ~75% rated power on a full tank (158.5 gal / 600 L).
Estimated 75% Load Fuel Burn~12.2 gal/hr (46.3 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Agco DT200A Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Agco DT200A.
Converted Equivalents:
Horsepower (HP)235 hp
Kilowatts (kW)175.2 kW
Metric Horsepower (PS / CV)238.3 PS
