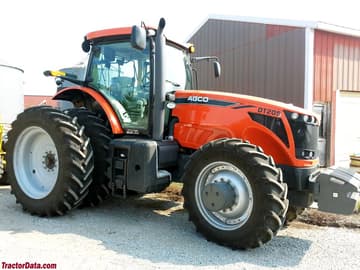

agco dt205b
 | 2009 - 2010
DT-B SeriesRow-Crop tractor | 2009 - 2010 | DT-B Series | Row-Crop tractor |
|---|---|---|---|---|
2009 - 2010 | ||||
DT-B Series | ||||
Row-Crop tractor | ||||
2009 - 2010 | |
|---|---|
DT-B Series | |
Row-Crop tractor |
Production | |
|---|---|
Manufacturer | AGCO |
Row-Crop tractor | |
Built in Beauvais, France | |
Original price was $185,670 in 2009 | |
The AGCO DT205B is the same as the Massey Ferguson 8650. | |
AGCO DT205B Engine | |
|---|---|
AGCO SISU POWER 8.4L 6-cyl diesel | |
Fuel tank | 155.9 gal
590.1 L |
| 182.3 gal (without DEF)
690.0 L |
Exhaust fluid (DEF) | 7.9 gal
29.9 L |
Engine details ...  | |
AGCO DT205B Transmission | |
|---|---|
continuously variable transmission | |
Transmission details ...  |
AGCO DT205B Power | |
|---|---|
Engine | 240 hp
179.0 kW |
PTO (claimed) | 205 hp
152.9 kW |
Drawbar (tested) | 180.1 hp
134.3 kW |
PTO (tested) | 250.0 hp
186.4 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Four-wheel drive | |
Final drives | inboard planetary |
Differential lock | full locking electro-hydraulic front and rear |
Power steering | |
Hydraulic wet disc brakes | |
Cab standard with heat and air-conditioning. Optional heated seat, power adjustable mirrors, and automatic temperature control. ISOBUS 11783 compatible. Auto-Guide optional. | |
Photos | |
|---|---|
 | |
AGCO DT205B photos...  |
Hydraulics | |
|---|---|
Type | closed center load sensing |
Pressure | 2,901 psi
200.0 bar |
Valves | 4 to 6 |
SCV flow | 26.4 gpm
99.9 lpm |
Total flow | 46.2 gpm
174.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | 3 |
| 4 OptOptional |
Rear lift (at ends) | 26,460 lbs
12002 kg |
Rear lift (at 24"/610mm) | 21,336 lbs
9678 kg |
Front Hitch | 3 |
Front lift (at ends) | 11,020 lbs
4998 kg |
Drawbar | Category 3 |
| Category 3 Heavy Duty OptOptional |
| Category 4 OptOptional |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic |
Rear PTO Type | 1000E/1000 (1.75) |
Engine RPM | 1000@1970 |
| 1000E@1605 |
Front PTO | optional |
Front PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 122.2 inches
310 cm |
Weight | 24,250 lbs
10999 kg |
Front tire | 420/90R30 |
Rear tire | 480/80R46 |
Full dimensions and tires ...  | |
AGCO DT205B attachments | |
|---|---|
front-end loader | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 240 |
Battery volts | 12 |
