AGCO LT70

The AGCO LT70 is a tractor produced by Agco. It is equipped with a 239 ci 3.9 L engine. Transmission: 12 forward and 4 reverse. Operating weight: 7245 to 8650 pounds.

Fuel & Capacities
34 gal 128.7 L
Transmission
12 forward and 4 reverse
Operating Weight
7245 to 8650 pounds

Overview

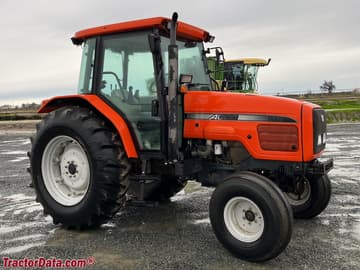

AGCO LT70 tractor photo
2002 - 2004 LT SeriesUtility tractor LT Series Utility tractor
Production
Manufacturer
AGCO
Utility tractor
Built in Beauvais, France
AGCO LT70 Engine
Cummins 3.9L 4-cyl diesel
Fuel tank
34 gal 128.7 L
50 gal (Optional with cab) 189.2 L
Engine details ...
AGCO LT70 Power
PTO (claimed)
70 hp 52.2 kW
PTO (tested)
75.23 hp 56.1 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Power steering
Hydraulic wet disc brakes
Two-post ROPS. Cab optional with air-conditioning.
Hydraulics
Type
open center
Pressure
3045 psi 210.0 bar
SCV flow
18 gpm 68.1 lpm
Total flow
25.7 gpm 97.3 lpm
Tractor hitch
Rear Type
II
Rear lift (at 24"/610mm)
4100 lbs 1859 kg
6200 lbsOptOptional 2812 kg
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540/1000
Dimensions & Tires
Wheelbase
97 inches 246 cm
Weight
7245 to 8650 pounds
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Battery volts
12
References
LT70 references literature
LT Series - Ready to Rumble published in 2001, by AGCO

Engine

Engine Detail — 239 ci / 3.9 L Diesel

Manufacturer
Cummins 4BT3.9T
Configuration
turbocharged diesel, 4-cylinder, liquid-cooled
Displacement
239 ci 3.9 L
Bore/Stroke
4.016x4.724 inches 102 x 120 mm
Air cleaner
dual dry element
Compression
17.0:1
Rated RPM
2200
Starter
electric
Starter volts
12

Transmission

Transmission options
24-speed two-speed power shift
12-speed mechanical shuttle
12-speed

Transmission — 24 forward and reverse two-speed power shift

Type
two-speed power shift
Gears
24 forward and reverse
Clutch
wet disc

Transmission — 12 forward and reverse mechanical shuttle

Type
mechanical shuttle
Gears
12 forward and reverse

Transmission — 12 forward and 4 reverse

Gears
12 forward and 4 reverse

Dimensions

AGCO LT70 Tires
Dimensions
Wheelbase
97 inches 246 cm
Length
165 inches 419 cm
Width
83 inches 210 cm
Height (cab)
103 inches 261 cm
AGCO LT70 Weight
2WD ROPS Shipping
7245 lbs 3286 kg
2WD Cab Shipping
8150 lbs 3696 kg
4WD Cab Shipping
8650 lbs 3923 kg

Tests

Nebraska Tractor Test 1769
Diesel 12-speed 2WD March 16 - 17, 2000 Link: Nebraska Tractor Test 1769 file
PTO performance
Max power
75.23 hp 56.1 kW
Fuel use
4.6 gal/hour 17.4 l/hour
Power at rated PTO speed
74.89 hp 55.8 kW
Fuel use
4.8 gal/hour 18.2 l/hour

Attachments

Attachment overview
AGCO FL300 loader
AGCO FL400 loader

Photos

AGCO LT70

AGCO LT70

AGCO LT70

AGCO LT70

AGCO LT70

AGCO LT70

AGCO LT70

AGCO LT70

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Agco LT70.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
