AGCO ST45

The AGCO ST45 is a tractor produced by Agco. It is equipped with a 134.1 ci 2.2 L engine. The listed engine power is Diesel (net): 42.4 hp / 31.6 kW; Diesel (gross): 44.2 hp / 33.0 kW. Transmission: infinite forward and reverse (four-range). Operating weight: 803 lbs 364 kg.

Overview

	2001 - 2004 ST SeriesCompact Utility tractorIseki built ST Series Compact Utility tractor Iseki built

Production
Distributor	AGCO
Manufacturer	Iseki
Compact Utility tractor
Built in Matsuyama, Japan

Variants
1165	similar Massey Ferguson model

AGCO ST45 Engine
Iseki 2.2L 4-cyl diesel
Fuel tank	12.7 gal 48.1 L
Engine details ...

AGCO ST45 Power
Engine (gross)	44.2 hp 33.0 kW
Engine (net)	42.4 hp 31.6 kW
Gear PTO (claimed)	37 hp 27.6 kW
Hydro PTO (claimed)	36 hp 26.8 kW

Mechanical
Four-wheel drive
Final drives	spur gear
Differential lock	mechanical rear
Power steering
Wet disc brakes
Two-post fixed ROPS.

Hydraulics
Type	open center
Pressure	2275 psi 156.9 bar
Pump flow	7.4 gpm 28.0 lpm
Total flow	12.6 gpm 47.7 lpm
Steering flow	5.2 gpm 19.7 lpm
Steering press.	2485 psi 171.3 bar

Tractor hitch
Rear Type	I
Control	position and draft control
Rear lift (at ends)	3086 lbs 1399 kg
Rear lift (at 24"/610mm)	2600 lbs 1179 kg
Rear Arms	telescopic link ends

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540 (1.375)
Engine RPM	540@2391
Mid PTO	optional *Mid PTO only available with hydrostatic transmission.
Mid PTO Type	2000

Dimensions & Tires
Wheelbase	78.9 inches 200 cm
Weight	4448 lbs 2017 kg
Front tire	9.5-16
Rear tire	13.6-28
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	40
Battery CCA	622
Battery volts	12

References
Compact Tractors published in 2000, by AGCO
ST Series published in 2001, by AGCO
ST Series Compact Tractors published in 2002, by AGCO
ST Series published in 2004, by AGCO
ST Series Compact Tractors published in 2001, by AGCO*
*Publication contains known errors.

Engine

Engine Detail — 134.1 ci / 2.2 L Diesel

Manufacturer	Iseki E4CG
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled inline
Displacement	134.1 ci 2.2 L
Bore/Stroke	3.43x3.64 inches 87 x 92 mm
Power (net)	42.4 hp 31.6 kW
Power (gross)	44.2 hp 33.0 kW
Fuel system	indirect injection
Air cleaner	dry
Pre-heating	glow plugs
Compression	21.8:1
Rated RPM	2600
Idle RPM	975-2700
Torque	139 lb-ft 188.5 Nm
Torque RPM	1500
Starter	electric
Starter volts	12
Oil capacity	8.4 qts 7.9 L
Coolant capacity	10 qts 9.5 L

Transmission

Transmission options
16-speed mechanical shuttle
16-speed power shuttle
hydrostatic

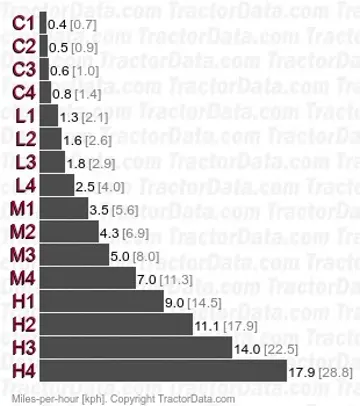

Transmission — 16 forward and reverse mechanical shuttle

Type	mechanical shuttle
Gears	16 forward and reverse
Clutch	260mm dry disc
With 13.6-28 rear tires. Reverse speeds are 5% slower than forward.

Transmission — 16 forward and reverse power shuttle

Type	power shuttle
Gears	16 forward and reverse
Clutch	wet disc

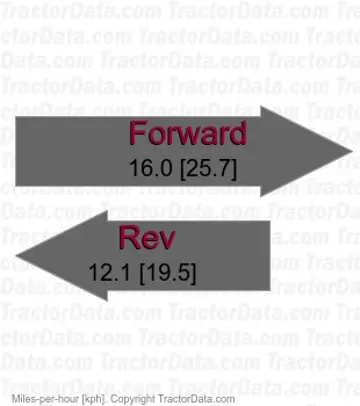

Transmission — infinite forward and reverse (four-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (four-range)

Dimensions

AGCO ST45 Tires
Standard tires (ag)	Front: 9.5-16. Rear: 13.6-28
Lawn/turf front	212/80D-15
Lawn/turf rear	475/65D-20

Dimensions
Wheelbase	78.9 inches 200 cm
Length	137 inches 347 cm
Width	69.1 inches 175 cm
Height (ROPS)	89 inches 226 cm
Shipping weight	4448 lbs 2017 kg
Max weight	6000 lbs 2721 kg
Front tread	52.5 inches 133 cm
Rear tread	52 to 60 inches 132 to 152 cm

Attachments

Attachment overview
Front-end loader
Backhoe

AGCO SH17 Backhoe
Backhoe type	AGCO SH17 Backhoe
Weight	803 lbs 364 kg
Transport height	72.8 inches 184 cm
Bucket width	10 inches 25 cm
	12 inches 30 cm
	16 inches 40 cm
	24 inches 60 cm
	37 inches 93 cm
2-Foot flat digging depth	90 inches 228 cm
Reach from pivot	112.2 inches 284 cm
Bucket Rotation	165°
Swing Arc	180°

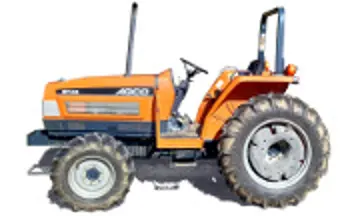

Photos

AGCO ST45
