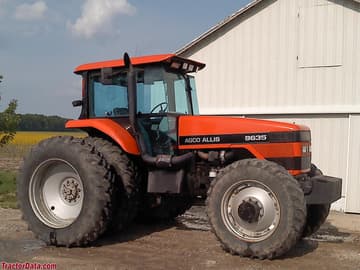

agco allis 9635
 | 1994 - 1997
9600 SeriesRow-Crop tractor | 1994 - 1997 | 9600 Series | Row-Crop tractor |
|---|---|---|---|---|
1994 - 1997 | ||||
9600 Series | ||||
Row-Crop tractor | ||||
1994 - 1997 | |
|---|---|
9600 Series | |
Row-Crop tractor |
Production | |
|---|---|
Manufacturer | AGCO Allis |
Row-Crop tractor | |
Original price was $76,000 in 1997 | |
Variants | |
|---|---|
9435 | 32-speed semi-powershift |
9635 | 18-speed full powershift |
AGCO Allis 9635 Engine | |
|---|---|
Detroit Diesel 7.6L 6-cyl diesel | |
Fuel tank | 67 gal
253.6 L |
| 97 galOptOptional
367.1 L |
Engine details ...  | |
AGCO Allis 9635 Transmission | |
|---|---|
18-speed full power shift | |
Transmission details ...  |
AGCO Allis 9635 Power | |
|---|---|
PTO (claimed) | 135 hp
100.7 kW |
Drawbar (tested) | 112.29 hp
83.7 kW |
PTO (tested) | 141.63 hp
105.6 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Final drives | inboard planetary |
Differential lock | electro-hydraulic rear |
Power steering | |
Hydraulic wet disc brakes | |
Cab standard with air-conditioning. | |
Photos | |
|---|---|
 | |
AGCO Allis 9635 photos...  |
Hydraulics | |
|---|---|
Type | closed center |
Pressure | 2250 psi
155.1 bar |
Rear valves | 3 or 4 |
Pump flow | 22 gpm
83.3 lpm |
Tractor hitch | |
|---|---|
Rear Type | III/II |
Control | lower-link draft sensing |
Rear lift (at 24"/610mm) | 7212 lbs
3271 kg |
| 8544 lbsOptOptional
3875 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | hydraulic wet disc |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@2228 |
| 1000@2200 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 123.2 inches
312 cm |
4WD Wheelbase | 116.5 inches
295 cm |
Weight | 14475 to 17478 pounds |
Front tire | 11.00-16 |
2WD Rear tire | 18.4R38 |
Full dimensions and tires ...  | |
9635 Serial Numbers | |
|---|---|
Location: | Console, right side |
1994 | 831001 |
1995 | 931501 |
1996 | 932301 |
1997 | 932376 |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Batteries | 2 |
Battery volts | 12 |
References | |
|---|---|
 | |
9600/9800 Series Tractors published by AGCO |
