AGCO 1313H

The AGCO 1313H is a tractor produced by Agco Lawn Tractors. It is equipped with a 480 cc 29.3 ci engine. The listed engine power is Gasoline (gross): 12.5 hp / 9.3 kW. Transmission: infinite forward and reverse. Operating weight: 147 lbs 66 kg.

Overview

	1992 - 1994 1300 SeriesFront-mount mowerSimplicity built 1300 Series Front-mount mower Simplicity built

Series map: 1312H1313H1316H12.0hp12.5hp16.0hp

Note: the AGCO model 1313H is the same as the Simplicity 12.5FCH42. The following data is from the 12.5FCH42 listing.

Production
Distributor	AGCO
Manufacturer	Simplicity
Front-mount mower
Original price	$3,900 (1993 )
	$3,950 (1994 )

Variants
12.5FCH42	similar Simplicity model

AGCO 1313H Engine
12.5HP Briggs & Stratton 480cc 2-cyl gasoline
Fuel tank	2 gal 7.6 L
Engine details ...

AGCO 1313H Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	40 inches 101 cm
Weight	633 lbs 287 kg
Front tire	16x6.5-8
Rear tire	13x5.0-6
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	16
Battery CCA	200
Battery volts	12

References
Operator's Manual 1300 Series (1707275) published in 1992
Lawn & Garden Tractors published in 1993, by AGCO Allis
Lawn & Garden Tractors published in 1994, by AGCO Allis
1994 Price List published in 1993, by Simplicity

Engine

Series map: 1312H1313H1316H12.0hp12.5hp16.0hp

Note: the AGCO model 1313H is the same as the Simplicity 12.5FCH42. The following data is from the 12.5FCH42 listing.

Engine Detail — 480 cc / 29.3 ci Gasoline

Manufacturer	Briggs & Stratton
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	480 cc 29.3 ci
Bore/Stroke	2.68x2.60 inches 68 x 66 mm
Power (gross)	12.5 hp 9.3 kW
Air cleaner	paper element with foam pre-cleaner
Starter	electric
Starter volts	12
Oil capacity	1.75 qts 1.7 L
Oil change	25 h

Transmission

Series map: 1312H1313H1316H12.0hp12.5hp16.0hp

Note: the AGCO model 1313H is the same as the Simplicity 12.5FCH42. The following data is from the 12.5FCH42 listing.

Transmission — infinite forward and reverse belt-driven hydrostatic

Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Series map: 1312H1313H1316H12.0hp12.5hp16.0hp

Note: the AGCO model 1313H is the same as the Simplicity 12.5FCH42. The following data is from the 12.5FCH42 listing.

AGCO 1313H Tires
Lawn/turf front	16x6.5-8
Lawn/turf rear	13x5.0-6

Dimensions
Wheelbase	40 inches 101 cm
Length	64.25 inches*Tractor only 163 cm
	87.25 inches 221 cm
Width	38 inches 96 cm
Height (steering wheel)	40.5 inches 102 cm
Height (hood)	26.5 inches 67 cm
Weight	633 lbs 287 kg
Front axle	.75 inch diameter 19 mm

Attachments

Series map: 1312H1313H1316H12.0hp12.5hp16.0hp

Note: the AGCO model 1313H is the same as the Simplicity 12.5FCH42. The following data is from the 12.5FCH42 listing.

42" Mower deck
Type	front-mount Simplicity 1691662
	3-blade
Cutting width	42 inches 106 cm
Weight	147 lbs 66 kg
Overall width	57.5 inches 146 cm
Cut height	1.5 to 4 inch 3 to 10 cm

Photos

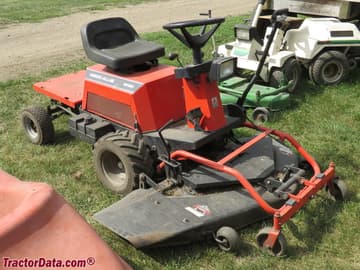

AGCO Allis 1313H.

AGCO Allis 1313H.

AGCO Allis 1313H operator station and controls.
